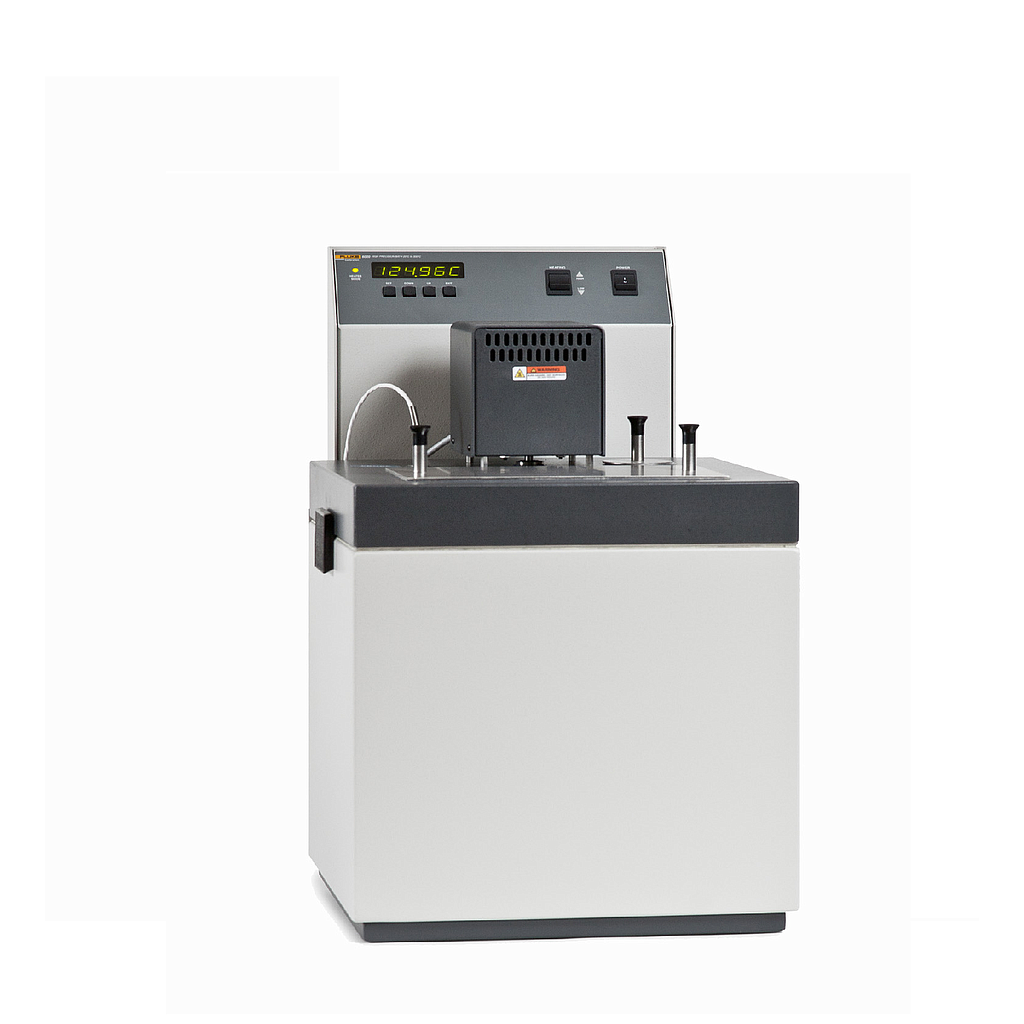

Fluke 6024 High Temperature Calibration Oil Baths (40 °C to 300 °C, ±0.001°C, 42 L)
Manufacturer: Fluke (Calibration) Model: 6024 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Range: 40 °C to 300 °C
Stability:
±0.001 °C at 40 °C (water)
±0.003 °C at 100 °C (oil 5012)
±0.005 °C at 300 °C (oil 5017)
Uniformity:
±0.002 °C at 40 °C (water)
±0.004 °C at 100 °C (oil 5012)
±0.012 °C at 300 °C (oil 5017)
Temperature Setting: Digital display with push-button data entry
Set-Point Resolution: 0.01 °C; high-resolution mode, 0.00018 °C
Display Temperature Resolution: 0.01 °C
Digital Setting Accuracy: ±1 °C
Digital Setting Repeatability: ±0.02 °C
Heaters: 350 and 1050 watts
Access Opening : 184 x 324 mm (7.25 x 12.75 in)
Depth: 337 mm (13.25 in)
Wetted Parts: 304 stainless steel
Power: 115 VAC (±10 %), 50/60 Hz, 10 A or 230 VAC (±10 %), 50/60 Hz, 5 A, specify
Volume: 42 liters (11.2 gallons)
Weight: 36 kg (80 lb.)
Size (HxWxD): 699 x 483 x 584 mm (27.5 x 19 x 23 in)
Specifications |
|||
| 6020 | 6022 | 6024 | |
| Range | 40 °C to 300 °C† | ||
| Stability | ±0.001 °C at 40 °C (water) ±0.003 °C at 100 °C (oil 5012) ±0.005 °C at 300 °C (oil 5017) |
||
| Uniformity | ±0.002 °C at 40 °C (water) ±0.004 °C at 100 °C (oil 5012) ±0.012 °C at 300 °C (oil 5017) |
||
| Temperature Setting | Digital display with push-button data entry | ||
| Set-Point Resolution | 0.01 °C; high-resolution mode, 0.00018 °C | ||
| Display Temperature Resolution |
0.01 °C | ||
| Digital Setting Accuracy | ±1 °C | ||
| Digital Setting Repeatability | ±0.02 °C | ||
| Heaters | 350 and 1050 watts | ||
| Access Opening (call for custom openings) |
127 x 254 mm (5 x 10 in) | 184 x 324 mm (7.25 x 12.75 in) |
|
| Depth | 305 mm (12 in) | 464 mm (18.25 in) | 337 mm (13.25 in) |
| Wetted Parts | 304 stainless steel | ||
| Power | 115 VAC (±10 %), 50/60 Hz, 10 A or 230 VAC (±10 %), 50/60 Hz, 5 A, specify | ||
| Volume | 27 liters (7.2 gallons) | 42 liters (11.2 gallons) | |
| Weight | 32 kg (70 lb.) | 36 kg (80 lb.) | |
| Size (HxWxD) | 648 x 406 x 508 mm (25.5 x 16 x 20 in) |
813 x 406 x 508 mm (32 x 16 x 20 in) |
699 x 483 x 584 mm (27.5 x 19 x 23 in) |
| Automation Package | Interface-it software and RS-232 computer interface are included for setting bath temperature via remote computer. For IEEE-488, add the 2001-IEEE. | ||
|
†External cooling required for operation below 40 °C. Cooling coils are built into the |
|||
