FOV with standard lens (spatial resolution): 0.93 mRad, D:S 1065:1.
Detector resolution: 640 x 480 (307,200).
SuperResolution: Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image.
MultiSharp™ Focus: Yes, focused near and far, throughout the field of view.
LaserSharp® Auto Focus: Yes, for consistently in-focus images.
Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen.
Advanced manual focus: Yes.
Ruggedised touchscreen display: 3.5 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design for one-handed use: Yes.
Digital zoom: 2x and 4x.
Temperature Measurement
Temperature measurement range (not calibrated below -10 °C): ≤-10 °C to 1000 °C (14 °F to 1832 °F).
Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater).
Thermal sensitivity (NETD): ≤0.025 °C at 30 °C target temp (25 mK).
On-screen emissivity correction: Yes (both value and table).
On-screen reflected background temperature compensation: Yes.
On-screen transmission correction: Yes.
Wireless Connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available).
Fluke Connect® app compatible: Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect® app for saving and sharing.
Fluke Connect® Assets optional software: Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.
Fluke Connect® Instant Upload: Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect® system for viewing on your smartphone or PC.
Fluke Connect® tool compatible: Yes, connects wirelessly to select Fluke Connect® enabled tools and displays measurements on camera screen. Five simultaneous connections supported.
IR-Fusion® Technology
Adds the context of the visible details to your infrared image.
AutoBlend™ modeMin, Mid, Max IR plus full visible on camera; continously variable in software.
Picture-In-Picture (PIP): Yes.
Built-in digital camera (visible light)5 MP.
Lenses
Standard lens: IFOV (spatial resolution)0.93 mRad, D:S 1065:1.
Field of view: 34 °H x 24 °V.
Minimum focus distance: 15 cm (approx. 6 in).
IR-Fusion® technology: Picture-in-picture and full screen.
Optional 2x telephoto smart lens: IFOV0.65 mRad, D:S 1529:1.
Field of view: 12 °H x 9 °V.
Minimum focus distance: 45 cm (approx. 18 in).
IR-Fusion® technology: Picture-in-picture and full screen.
Optional 4x telephoto smart lens: IFOV0.33 mRad, D:S 2941:1.
Field of view: 6.0 °H x 4.5 °V
Minimum focus distance: 45 cm (approx. 18 in).
IR-Fusion® technology: Picture-in-picture and full screen.
Optional wide-angle smart lens: IFOV2.62 mRad, D:S 377:1.
Field of view: 46 °H x 34 °V.
Minimum focus distance: 15 cm (approx. 6 in).
IR-Fusion® technology: Full screen.
Level and Span
Smooth auto and manual scaling.
Fast auto toggle between manual and auto modes: Yes.
Fast auto-rescale in manual mode: Yes.
Minimum span (in manual mode): 2.0 °C (3.6 °F).
Minimum span (in auto mode): 3.0 °C (5.4 °F).
Data Storage and Image Capture
Extensive memory options: Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage.
Image capture, review, save mechanism: One-handed image capture,review, and save capability.
Image file formats: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files.
Memory review: Thumbnail and fullscreen review.
SoftwareSmartView® software - full analysis and reporting software and Fluke Connect® system.
Export file formats with SmartView® software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF.
Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required.
IR-PhotoNotes™: Yes (5 images).
Text annotation: Yes.
Video recording: Standard and radiometric.
File formats video: Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3).
Streaming video (remote display): Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor.
Remote control operation: Yes, through SmartView® software or Fluke Connect® mobile app.
Auto capture (temperature and interval): Yes.
Battery
Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level.
Battery life: 2-3 hours per battery (*Actual life varies depending on settings and usage).
Battery charge time: 2.5 hours to full charge.
Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter.
AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz).
Power saving: User selectable sleep and power off modes.
Colour Palettes
Standard palettes: 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted.
Ultra Contrast™ palettes: 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted.
General Specifications
Frame rate: 9 Hz.
Laser pointer: Yes.
LED light (torch): Yes.
Colour alarms (temperature alarms): High temperature, low temperature, and isotherms (within range).
Center-point temperature measurement: Yes.
Spot temperature: Hot and cold spot markers.
User-definable spot markers: 3 user-definable spot markers.
Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display.
Infrared spectral band: 7.5 μm to 14 μm (long wave).
Operating temperature: -10 °C to +50 °C (14 °F to 122 °F).
Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F) without batteries.
Relative humidity: 10% to 95% non-condensing.
Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2.
Electromagnetic compatibilityIEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A.
Australian RCM: IEC 61326-1.
US FCCCFR 47, Part 15 Subpart B
Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6.
Shock: 25 g, IEC 68-2-29.
Drop: Engineered to withstand 2 meter (6.5 feet) drop with standard lens.
Size (H x W x L): 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in).
Weight (battery included): 1.04 kg (2.3 lb).
Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions).

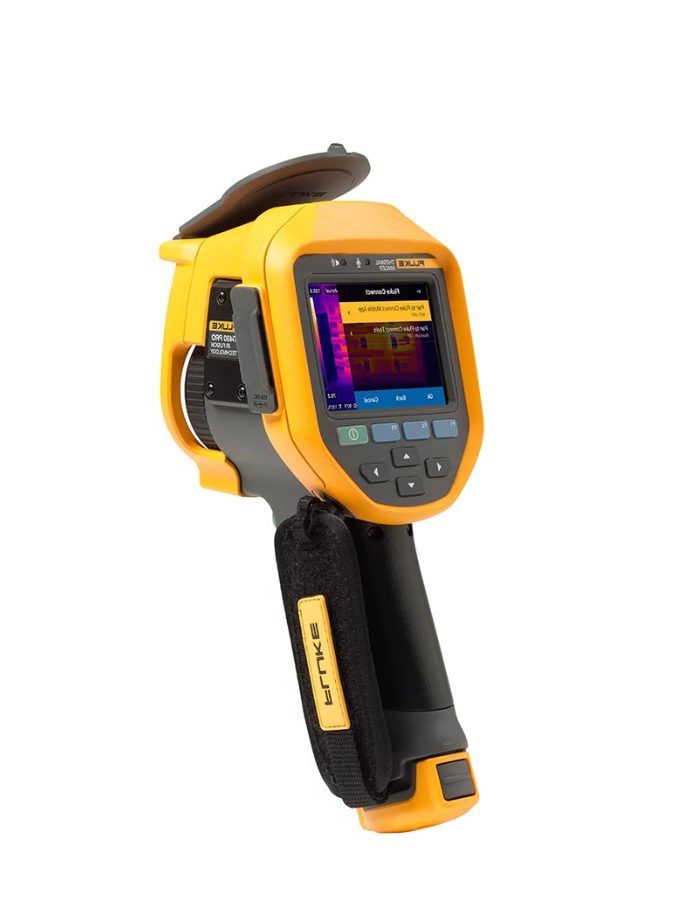

Fluke Ti480 PRO Warranty: Two-years (standard), extended warranties are available.
Recommended calibration cycle: Two-years (assumes normal operation and normal aging).
