FORMLABS PKG-F3B-WS- BASIC Form 3B+ 3D printer basic package | EMIN.ASIA

FORMLABS PKG-F3B-WS- BASIC Form 3B+ 3D printer basic package

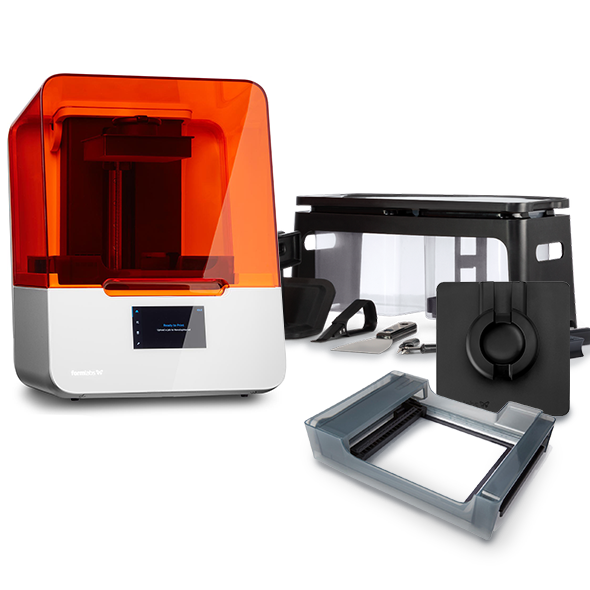

Name: FORMLABS PKG-F3B-WS- BASIC Form 3B+ 3D printer basic package
Brand: FORMLABS

ManufacturerFORMLABS(View more products from this manufacturer)

ModelPKG-F3B-WS- BASIC

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Technology

Laser-Powered Stereolithography (SLA)

Printer Engine

Low Force Stereolithography™ (LFS)

Key Components of the Print Engine

Laser

Light Processing Unit (LPU)

Flexible Film Resin Tank

Intelligent Control Systems

Automatic Resin Handling

Light Source

1 Light Processing Unit

EN 60825-1:2014 certified

Class 1 Laser Product

405 nm optical wavelength

250 mW laser

85 µm laser spot size

Maximum Print Speed¹

31 mm/hour

1.2 in/hour

Typical Print Speed²

Average: 11 mm/hour across all materials

Range: 4-17 mm/hour depending on the material

Surface Accuracy (Restorative Models)⁴

On average with Model Resin V3:

87% of surfaces within 100 μm of CAD model

66% of surfaces within 50 μm of CAD model

On average with Model Resin V2:

94% of surfaces within 100 μm of CAD model

73% of surfaces within 50 μm of CAD model

Materials

45 industry-leading Formlabs materials, including 18 biocompatible, or third-party materials usingOpen Platform .

Biocompatible Materials

Yes

Build Volume (W x D x H)⁵

14.5 × 14.5 × 19.3 cm

5.7 × 5.7 × 7.6 in

4.05 liters

Build Area

210 cm²

32.6 in²

Maximum Part Length⁶

22.4 cm

8.8 in

XY Resolution⁷

25 µm

0.001 in

Layer Thickness⁸

25–300 µm

0.001–0.012 in

Printer Dimensions (W x D x H)

40.5 × 37.5 × 53 cm

15.9 × 14.8 × 20.9 in

Printer Weight

17.5 kg

38.5 lbs

Operating Environment

18–28 °C

64–82 °F

Power Requirements

100–240 VAC

2.5 A

50/60 Hz

220 W

Connectivity

Wi-Fi (2.4 and 5 GHz; IEEE 802.11 b/g/n, WPA/WPA2)

Ethernet (1000 Mbit)

USB-B 2.0

Printer Control⁹

5.5" interactive touchscreen

1280 × 720 resolution

Languages: English, Japanese, Traditional Chinese, Simplified Chinese

Alerts

Touchscreen alerts

SMS/email via Dashboard

Two LED status indicators

Speaker for audio alerts

Sensors and Control Systems

5 original sensors that control resin temperature, resin level, and print forces:

- Convection resin heating with thermistor temperature sensing

- Resin Level Sense: controls resin in the tank

- Z-Axis Force Sensor: controls and minimizes print forces

- Resin Cartridge Load Cell: measures approximate resin level in the cartridge

- Printer Leveling Sensor

Software

PreForm, Dashboard, Fleet Control

PreForm System Requirements

Windows 7 (64-bit) and up

Mac OS X 10.12 and up

OpenGL 2.1

C++ runtime library from Microsoft (Windows only)

4 GB RAM (8 GB recommended)

PreForm File Types

STL, OBJ, and 3MF file input

FORM file output

Resin Tank Estimated Lifetime¹⁰

250-800 hours of printing and/or 10-35 weeks exposed to resin, depending on material

For example: approximately 70 prints using Grey Resin V4 and average print time (11 hours) or approximately 20 prints using Tough 2000 Resin and average print time (11 hours)
