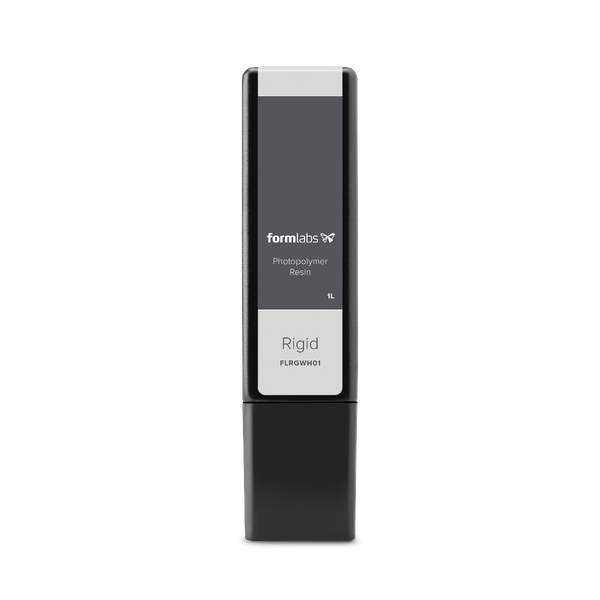

FORMLABS RS-F2-RGWH-01 Rigid Resin Cartridge (Form 2 - 3)

Whether you’re optimizing your manufacturing process, rapidly iterating through designs, or assessing form, fit, and function, our Engineering Resins for the Form 2 are formulated to withstand extensive testing and perform under stress.

Rigid Resin is reinforced with glass to offer very high stiffness and a polished finish. This material is highly resistant to deformation over time and is great for printing thin walls and features.

Supports print resolutions: 100 and 50 microns.

Post-curing required.

Requires Resin Tank LT for Form 2.

Requires Form 3 Resin Tank V2 for Form 3.

Rigid Resin decreases the lifetime of resin tanks.

Notice: Form 3 Resin Tank V1 is incompatible with Rigid, Grey Pro, and Elastic Resins. There are two versions of the Form 3 Resin Tank: Tank V1 and Tank V2.

Ultimate Tensile Strength: 75 MPa / 10907 psi

Flexural Modulus: 3.7 GPa / 537 ksi

Tensile Modulus: 4.1 GPa / 594 ksi

Elongation: 5.6 %

Notched IZOD: 18.8 J/m / 0.37 ft-lbf/in

Heat Deflection Temp. @ 1.8 MPa: 74 °C / 165.2 °F

Heat Deflection Temp. @ 0.45 MPa: 88 °C / 190.4 °F

Thermal Expansion (23 – 50 °C): 53 μm/m/°C / 29.5 μin/in/°F

Datasheet
