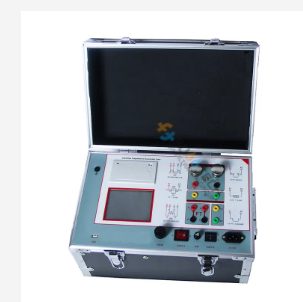

Fuootech FTCT-1000A 1000A Power Frequency CT PT Analyzer (AC220V ± 20V, 50 ～ 60Hz)
Manufacturer: Fuootech Model: FTCT-1000A - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Operational Power Supply: AC220V±20V, 50～60Hz
Equipment Power Supply Output Waveform: Sine Wave
Single Tester Output Voltage of Excitation Characteristic: 0～2500V
Excitation Output Current 0～20 A
Single machine output current of turns ratio test: 0～1000A
CT ratio measurement range: 5～25000A/5A（5000A/1A）
PT ratio measurement range: 1～500kV
Load Range: 5～1000VA
Resistance measurement range: 0.1～300Ω
Error: ≤0.5%（0.2%*Reading+0.3%*Range）
Operating Temperature: －10℃～+40℃
Relative Humidity: ＜90RH%
Altitude: ≤1000m
Overall Dimension (Length × Width × Height): 400 *200 * 260（mm）
Weight: ≤22 Kg
