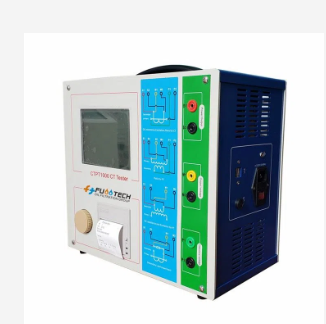

Fuootech FTCT-100B 100Vrms Portable CT PT Current Transformer Comprehensive Analyzer (0 ~ 180Vrms, 12Arms, 18A)
Manufacturer: Fuootech Model: FTCT-100B - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Usage: Class P/TP CT & VT
Output: 0~180Vrms, 12Arms, 18A (peak value)
Voltage measurement accuracy: ±0.05%
CT Ratio: Range: 1~40000
accuracy: ±0.05%
PT Ratio: Range: 1~40000
accuracy: ±0.05%
Phase: Range: ±5min
accuracy: 0.5min
DC resistance: Range: 0~300Ω
accuracy: 2%±2mΩ
Burden: Range: 0~1000VA
accuracy: 2%±0.2VA
Power supply: AC220V±10%，50Hz
Environmental Conditions: Operating temperature: -10℃~50℃, Humidity: ≤90%
Weight and Dimensions Dimensions: 340 mm×300 mm×150mm, Weight<9kg
