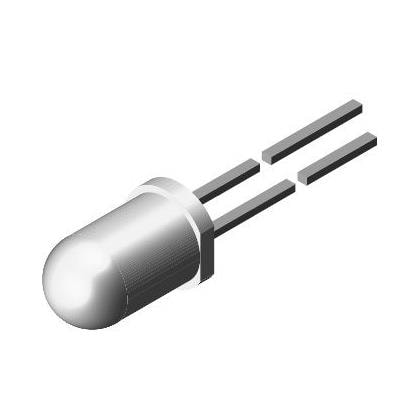

Vishay General Semiconductor BPV10NF PIN Photodiodes T-1.75 790 to 1050nm +/-20 deg
Manufacturer: Vishay General Semiconductor Model: BPV10NF - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 5.75 mm
Height: 8.6 mm
Length: 5.75 mm
Fall Time: 2.5 ns
Rise Time: 2.5 ns
Unit Weight: 497.041 mg
Dark Current: 1 nA
Photocurrent: 60 uA
Responsivity: 0.55 A/W
Mounting Style: Through Hole
Peak Wavelength: 940 nm
If - Forward Current: 50 mA
Vf - Forward Voltage: 1 V
Vr - Reverse Voltage: 60 V
Pd - Power Dissipation: 215 mW
Half Intensity Angle Degrees: 20 deg
Noise Equivalent Power - NEP: 3E-14 W/sqrt Hz
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
