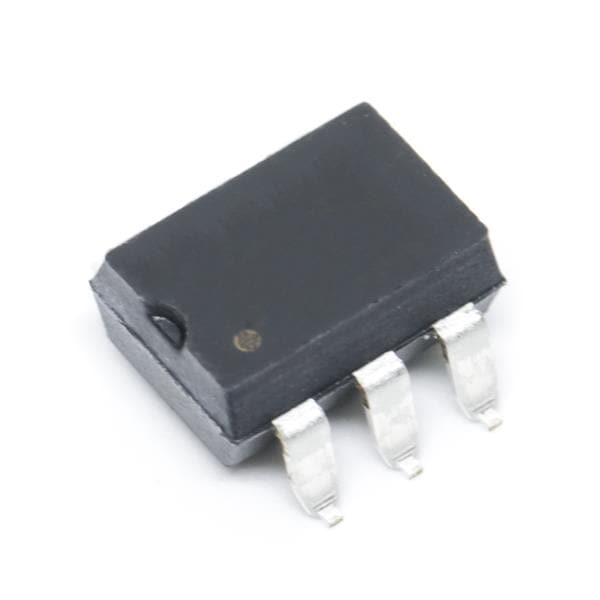

Vishay General Semiconductor CNY17F-2X017T Transistor Output Optocouplers Phototransistor Out Single CTR 63-125%
Manufacturer: Vishay General Semiconductor Model: CNY17F-2X017T - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 6.5 mm
Height: 3.81 mm
Length: 8.7 mm
Fall Time: 2 us
Rise Time: 2 us
Output Type: NPN Phototransistor
Unit Weight: 400 mg
Configuration: 1 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.65 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 63 %
Pd - Power Dissipation: 250 mW
Maximum Collector Current: 50 mA
Current Transfer Ratio - Max: 125 %
Current Transfer Ratio - Min: 63 %
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Emitter Saturation Voltage: 400 mV
