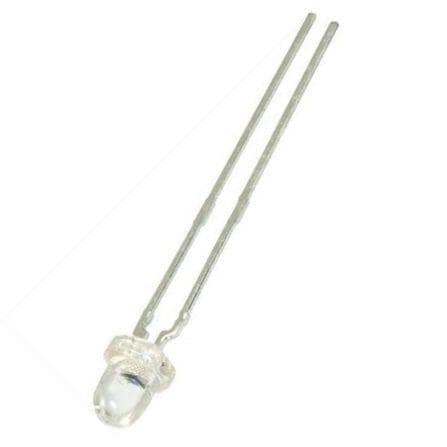

Vishay General Semiconductor TEFD4300F Silicon PIN Photodiode T-1 770 to 1070nm +/-20 deg
Manufacturer: Vishay General Semiconductor Model: TEFD4300F - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 3 mm
Height: 4.5 mm
Length: 3.2 mm
Fall Time: 100 ns
Rise Time: 100 ns
Dark Current: 150 pA
Photocurrent: 17 uA
Mounting Style: Through Hole
Peak Wavelength: 950 nm
If - Forward Current: 50 mA
Vf - Forward Voltage: 1 V
Vr - Reverse Voltage: 60 V
Pd - Power Dissipation: 215 mW
Half Intensity Angle Degrees: 20 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
