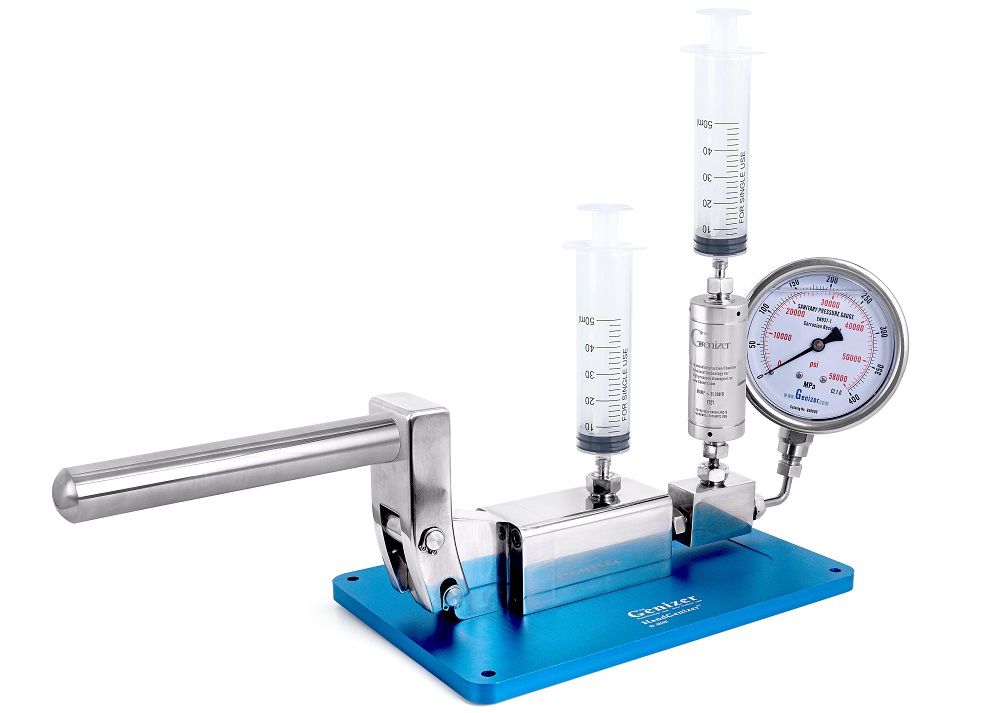

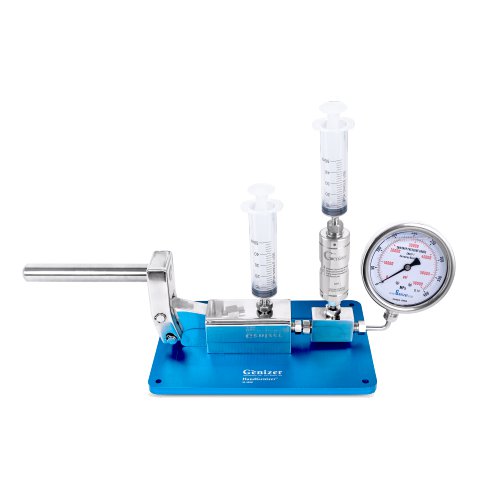

Genizer HG-15K Hand Drive High Pressure Homogenizer (25mL/min, 3mL, 15,000psi)
Manufacturer: Genizer Model: HG-15K - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Flow rate: 25mL/min
Min. Sample: 3mL
Max. Pressure: 15,000psi
Dimensions(cm): 25 × 40 × 20
Weight: 15 kg (32 lbs)
Multi-Stages (Adjustable): 3 stages 15,000psi/ 2 stages 8,000psi/1 stages 4,000psi
Max. Temp.: 80ºC (176ºF)
Power: Hand drive
Cleaning: Flush to clean; whole unit autoclavable
Application: Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration
Compatibility: Connection compatible with Y and Z type interaction chamber and liposome extruders
Standard features
Parts: Y-type diamond interaction chamber with cooling option
High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 1mL, display of flow rate and time, overload protection
Pressure Gauge: Sanitary 35,000 psi high pressure gauge
Inlet Type: 1/4" HP coupling
Outlet Type: 1/4" HP coupling
Feed Reservoir: 10mL syringe
Outlet Reservoir: 10mL syringe
Product Material: 316L stainless steel, tungsten carbide, viton, teflon
Material Standard: Sanitary grade, FDA, GMP
Use the Mini Hand Homogenizer for Small Biochemical Projects
Compared to pneumatic or hydraulic liquid processors, the HandGenizer is an eco- and budget-friendly mini homogenizer. It is a manual high pressure homogenizer that works by shifting the pump handle up and down. It needs no PLC control system or electricity and is perfect for basic experimental tasks, particularly when handling small quantities of liquid samples.
The HandGenizer’s mini pump has been designed specifically to provide the preferred pressure to the product stream. When the pump handle is lifted, a small quantity of the sample will be pulled into the mini-pump body. By shifting the pump handle fully down to make a high-pressure profile (maximum 30,000 psi) to the sample stream, this portion of the sample will enter the check valve and the Genizer Y-Type diamond interaction chamber. Finally, it exits the outlet to be collected.
It can also combine with a Genizer online liposome extruder to achieve liposome down-sizing.
Main Features of the NanoGenizer:
Diamond interaction chamber
Pressure ranges up to 30,000 psi
Capacity: 10 to 30 ml/min@ 30, 000 psi
Power: Manual operations
Minimum sample volume: 2 ml
Spares and tools
Application: Nano emulsions and liposomes
Datasheet
| Specifications | |||||
| Catalog No. | HG-10K | HG-15K | HG-20K | HG-25K | HG-30K |
| Flow rate | 50mL/min | 25mL/min | 25mL/min | 25mL/min | 25mL/min |
| Min. Sample | 3mL | 3mL | 3mL | 3mL | 3mL |
| Max. Pressure | 10,000psi | 15,000psi | 20,000psi | 25,000psi | 30,000psi |
| Dimensions(cm) | 25 × 40 × 20 | 25 × 40 × 20 | 25 × 40 × 20 | 25 × 40 × 20 | 25 × 40 × 20 |
| Weight | 15 kg (32 lbs) | 15 kg (32 lbs) | 15 kg (32 lbs) | 15 kg (32 lbs) | 15 kg (32 lbs) |
| Multi-Stages (Adjustable) | 3 stages 10,000psi 2 stages 4,000psi 1 stages 2,000psi | 3 stages 15,000psi 2 stages 8,000psi 1 stages 4,000psi | 3 stages 20,000psi 2 stages 12,000psi 1 stages 6,000psi | 3 stages 25,000psi 2 stages 16,000psi 1 stages 8,000psi | 3 stages 30,000psi 2 stages 20,000psi 1 stages 10,000psi |
| Max. Temp. | 80ºC (176ºF) | ||||
| Power | Hand drive | ||||
| Cleaning | Flush to clean; whole unit autoclavable | ||||
| Application | Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration | ||||
| Compatibility | Connection compatible with Y and Z type interaction chamber and liposome extruders | ||||
