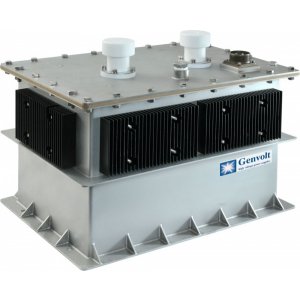

Genvolt 20kW HV Transformer Rectifier High Voltage (10-50kV)
Manufacturer: Genvolt Model: 20kW HV Transformer Rectifier Origin: United Kingdom Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power rating: 20kW
Frequency of operation: 20kHz
Output voltage: 33kVDC on full load
Average current: 600mA max.
Input voltage: 450V peak to peak
Primary current: Quasi sine wave (zero voltage switching)
Leakage inductance: <25uH
Pulse load current: 20A max.
Primary average current: 60A max.
Primary pulse current: 160A max.
Dimensions: 365W x 525D x 407H
Material: Stainless steel
Weight: 80kg max.
High temperature operation: +55°C
High temperature storage: +70°C
Low temperature operation: -20°C
Low temperature storage: 30°C
Relative humidity test: 95% RH at 40°C Non-condensing
