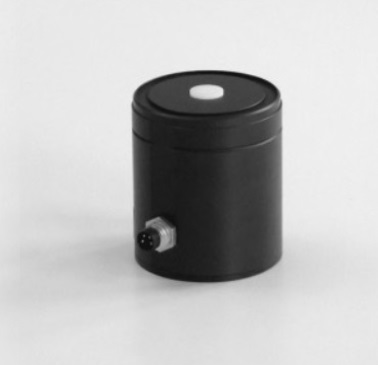

Gigahertz-Optik CSS-45-UV UV spectroradiometer (200 - 440 nm, 5.5 nm)

-Measurement range: typ. (10E-4 - 10E2) W/(m²nm)

-Typical applications

Radiometric setups requiring remote positioning of single or multiple detectors. Use with positioning equipment e.g. for mapping. Industrial monitoring, UV germicidial lighting, UV curing, UV phototherapy

-Calibration: Factory calibration. Traceable to international calibration standards.

-Input optics: Diffuser window with 10 mm diameter, cosine corrected field of view, f2 ≤ 1.5%

-Spectral Detector:

+Spectral range: (200 - 440) nm

+Optical Bandwidth: 5.5 nm

optical bandwidth correction applied according to CIE 214

+Spectral irradiance responsivity range (spectral measurement)

typ. (10E-4 - 10E2) W/(m²nm)

+Peak wavelength: ±1 nm

-Calibration uncertainty: Spectral Irradiance, traceable to national standard

-Interface: USB 2.0, RS 485

-Temperature range:

Operation: 10°C to +30°C

Storage: -10°C to +50°C

-Power Supply:

5 VDC by USB

(3.5 - 25) VDC by custom plug

max. current 500 mA

-Weight: 130g, only sensor without cables

-Dimensions:

45 mm diameter

53 mm height*

*height without WT protection dome

-Housing:

Splashproof/Watertight class:

CSS-45-UV: IP62
