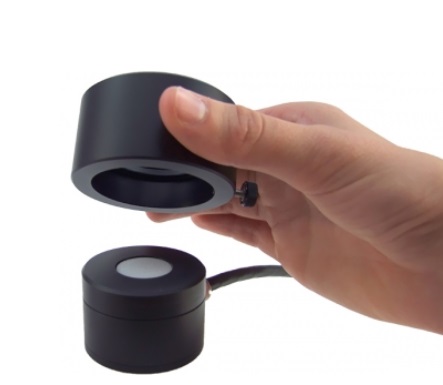

Gigahertz-Optik XD-45-HUV-4 Detector for UV Hazard Measurements (FOV 80 °)

-Field of View: 20 mm diameter diffuser with removable 80 ° F.O.V. front adapter

-Measurement range: SUV(λ) (Σ of 2 cells): effective irradiance 0.5 mW/m²  to 10 W/m² (max. resolution 0.05 mW/m²), details see spectral plot.

-Measurement range: SUV (200 - 320) nm: effective irradiance 0.5 mW/m² to 10000 W/m² (max. resolution 0.05 µW/m²), details see spectral plot (usage starts at 230 nm).

-Measurement range: SUV (320 - 400) nm: effective irradiance 0.5 µW/m² to 10 W/m² (max. resolution 0.05 µW/m²), details see spectral plot.

-Measurement range: UV-A (315 - 400) nm: irradiance 0.2 mW/m² to 10000 W/m² (max. resolution 0.02 mW/m²), details see spectral plot.

-Weight:

XD-45-HUV detector: 45 mm diameter, 30 mm high, 200 g (with cable)

FOV adapter: 60 mm diameter, 32/49 mm high, 50g
