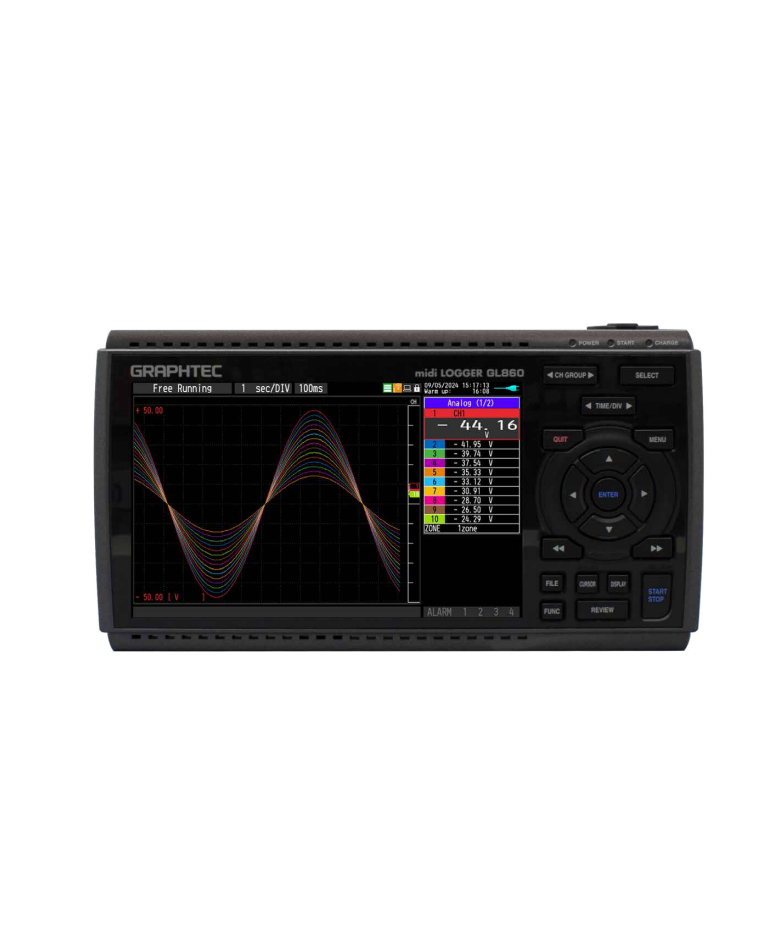

Number of analog input channels: 1 unit (20CH/30CH) , or extension unit (Max. 200CH)
External input/output
Input
Input: Trigger or Sampling (1 channel), Logic/Pulse (4 channels)
Input voltage range: 0 - +24V (single-ended input)
Input signal: No-voltage contact (a contact, b contact, NO,NC), Open collector, Voltage input
Output Alarm output (4 channels)
Output format: Open collector output (+5 V, 10 KΩ pull-up resistance)
Sampling interval 5ms-1h (5ms-50ms: voltage only number of channels is limited) , external(*1)
TIME / DIV: 1s-24h
Trigger function
Repeat action: Off- On
Trigger action: Start or stop capturing data by the trigger
Trigger source: Start/Stop: Off, Level, Alarm, External, Date, Weekly or Tim
Alarm function
Condition Setting:
Combination: OR or AND
Analog signal: Rising (High), Falling (Low), Window-in, Window-out
Logic signal: Pattern (combination of each input signal in high or low)
Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out
Pulse input function
Measurement mode: Rotation count (RPM) mode / Accumulating count mode / Instant count mode
Maximum number of pulse inputs:
Maximum input frequency: 50kHz
Maximum number of count: 50kC/sampling (16-bit counter)
PC I/F USB2.0 (Hi-speed) , Ethernet (10BASE-T / 100BASE-TX) Wireless LAN (using
B-568 optional item)
Storage Device:
Internal memory: Approx. 8GB
SD card slot:
1 (Supports SDHC, Up to approx. 32GB memory available)
*Up to 2GB per file
*Unable to use the SD card slot when using the optional wireless LAN unit
Contents: Setting conditions of the main unit, Recorded data, Screen capture
Operating environment: 0-45℃, 5-85%RH
(When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC)
Power source:
AC adapter AC100-240V / 50-60Hz
DC power DC8.5-24V (Max.26.4V)
Battery pack DC7.2V (2875mAh)*optional item, up to 2 packs can be installed.
Power consumption: 38VA or lower (using the AC adapter, with LCD display on, and battery pack being charged, 100V AC)
Earthquake resistant: Automotive parts Class 1A equivalent
