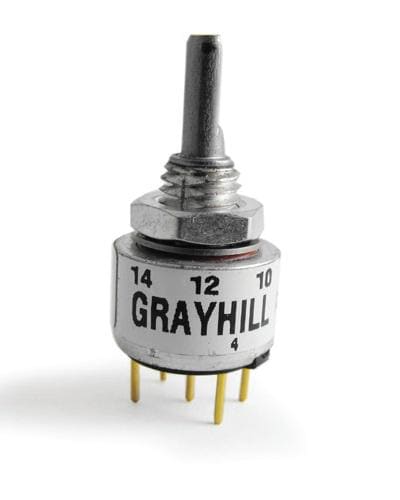

Grayhill 26AS22-01B16S Absolute 26AS22-01-1-16S-F
Manufacturer: Grayhill Model: 26AS22-01B16S - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Life: 25000 Cycle
Resolution: 16 PPR
Shaft Type: D / Flatted
Technology: Mechanical
Output Type: Binary Coded Decimal (BCD)
Unit Weight: 20 g
With Switch: Without Switch
Bushing Size: 1/4 in x 1/4 in
Shaft Length: 3/8 in
Bushing Thread: 1/4-28 UNF-2A
Mounting Style: PCB Mount
Shaft Diameter: 3.18 mm
Bushing Material: Metal
Size / Dimension: 1/2 in
Number of Detents: 16 Detent
Termination Style: PC Pin
Number of Channels: 4 Channel
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
