IR detector:
IR resolution: 400x300
Pixel size: 17μm
NETD: ≤40mK
Focal length: 9.7mm
FOV: 38°*28°
Frame rate: 25Hz
Visible Camera:
Resolution: 2 million pixels
Frame rate: 25Hz
Temperature Measurement:
Range: -10°C~50°C
Accuracy: ≤±0.3°C ( ambient temperature 16~32°C)
Calibration: Built-in shutter and external black body, automatic calibration after selecting mode
Environmental adaptability:
Work temperature: -10~50°C (ambient temperature 16~32°C)
Storage Temperature: -20°C~60°C
Work Humidity: <90% (non-condensing)
Shock: 30g 11ms, IEC60068-2-27
Vibration: 10Hz ~ 150Hz ~ 10Hz 0.15mm, IEC60068-2-6
Black body:
Blackbody target surface uniformity: ≤0.1°C
Temperature stability accuracy: ≤ ± 0.2°C (single point)
Camera head interface: Network interface: two-way, visible light 100M, infrared 1000M
Camera head power:
Input voltage: DC 12V
Input power: ≤ 12W

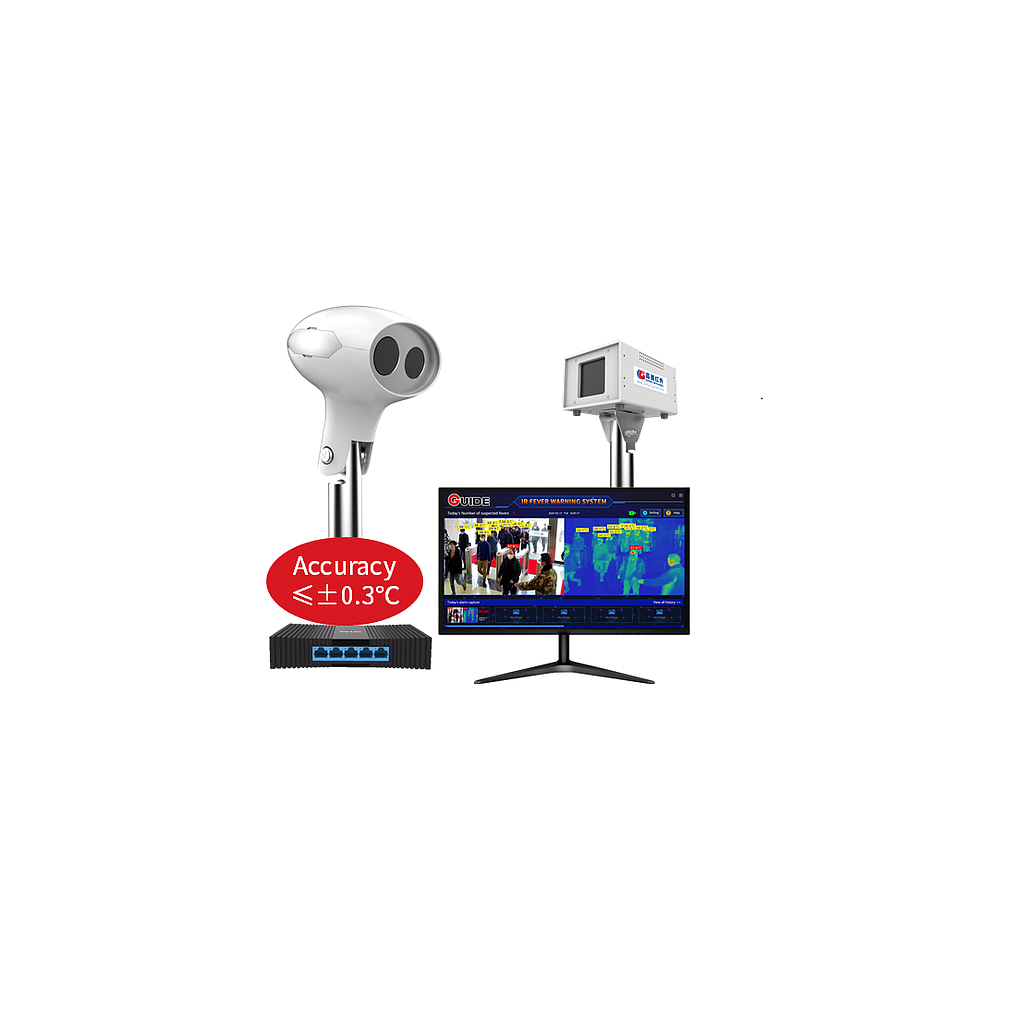

Standard delivery:
Camera head + stand
Black body + stand
Switch
PC Kit
Features:
Adopts 400x300 infrared uncooled Vox detector
AI deep learning algorithm based on neural network, more accurate temperature
measurement and lower false warning rate
Accurate single-point and multi-point high temperature tracking and warning
Equipped with black body, real-time temperature calibration, higher accuracy
Face recognition detection function, more intelligent
Stand-type, easy to move, standard PC with powerful analysis software
Datasheet
