Detector: Uncooled FPA, 384 x 288
Pitch :25μm
Spectral Range: 8μm~14μm
NETD: ≤80mk
Lens
FOV: 13.7° x10.3°
Focus :40mm
Visible
Resolution: 1280X960
Temperature
Measurement Range: 0°C ~50°C
Accuracy: ±0.3°C
Temperature Calibration: Built-in and exteriorization blackboby, auto calibration
Video
Frequency: 50Hz/60Hz
Format: PAL/NTSC
Power
Voltage: AC220V ±10%, 50HZ
Environment Characteristics
Working Temperature: -10°C ~ 50°C
Storage Temperature: -20°C ~ 60°C
Humidity: ＜90%
Interface
Interface: RJ45, power
Physical Parameter
Dimensions: 430mm x 240mm x 40mm (excluding PC)
Weight: 2KG ( excluding PC)
Standard configuration: IR236E
Thermal imager IR236: 1
IR lens: 1
Visual camera: 1
MOXA 100M switch device: 1
Blackbody: 1
Power cable of blackbody: 1
Bracket of blackbody: 1
Pan/Tilt or bracket of IR236: 1
Power cable of IR236: 1
Industry PC: 1
Video capture card: 2
DVR: 1
Video cable: 1
BNC connector: 1
Video coaxial cable: 1
Gigabit switch device: 1
Network cable: 1
Safety case: 1
Disc with software and user manual: 1
Certificate of conformity: 1
Optional accessory
LCD
Cabinet A (65*65*65 cm)
Cabinet B (132*65*65 cm)

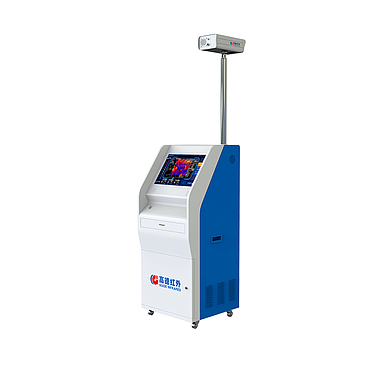

IR236E IR fever sensing system is professional in taking thermal images even on the flowing crowds with high efficiency and distinguish those with elevated temperature, which indicates possible presence of the fatal virus, like SARS and Zika Virus.With a size similar to competition
products, it integrates a wide assortment of features that deliver unprecedented efficiency, convenience and productivity. IR236E fever sensing system is absolutely the ideal equipment in the airports, ports, and stations, and it is the first guard to protect your health and wealth.
Features
- Find the fever people precisely and alarm automatically
- Razor-sharp visual and thermal imaging
- Real-time high-frequency data capture transmission and storage
- Precise single & multiple hot spots and Alarm

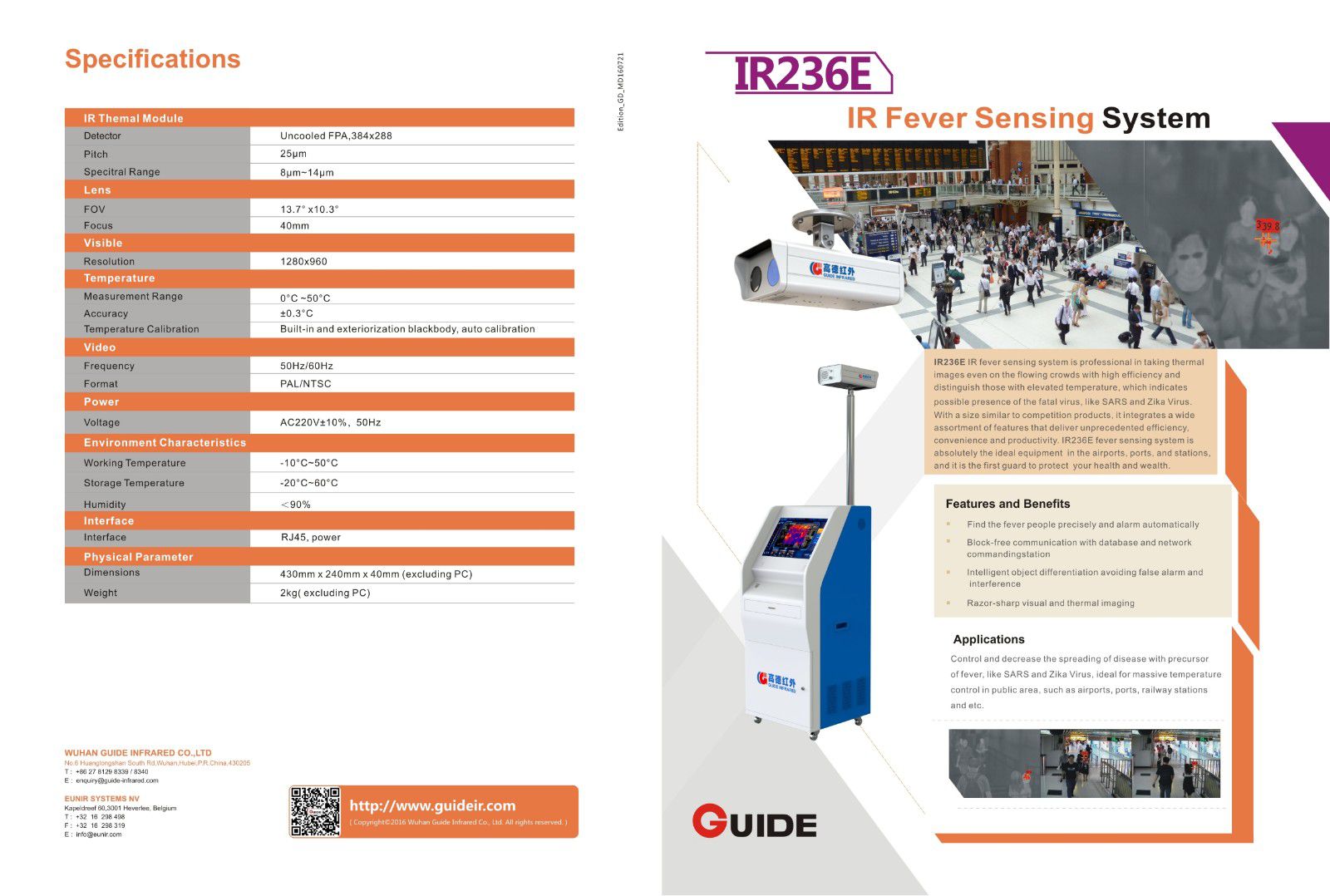

Datasheet
