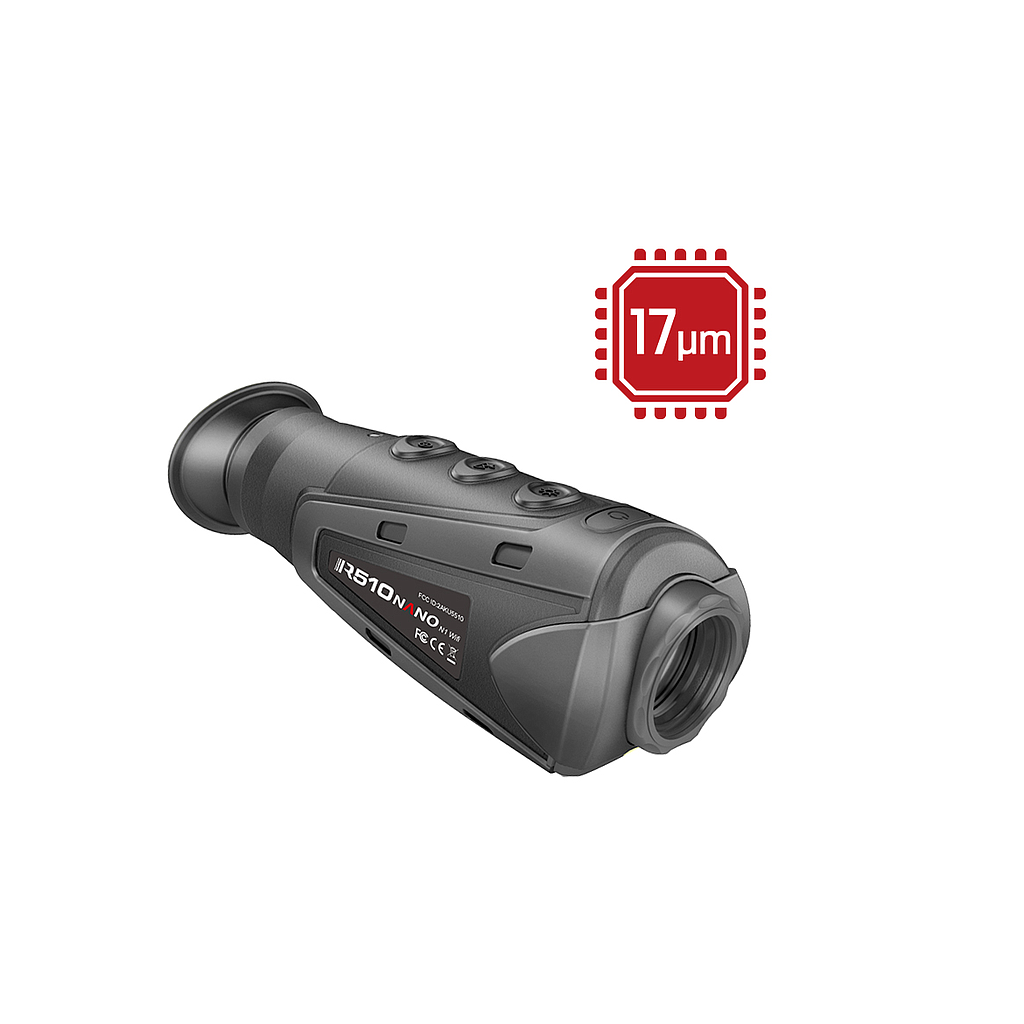

Guide IR510 N2 WIFI Handheld Thermal Imager (8μm~14μm; 14.6°×11.1°)

Detector

Detector Type: 400×300@17μm

Spectral Range: 8μm~14μm

Lens

Focus: 25mm

Focusing: Manual

FOV: 14.6°×11.1°

Screen: Colorful 0.2″LCOS

Viewfinder: Monocular, diopter adjustable ±4


Frame: 50Hz

Digital Zoom: ×2, ×4

Color Palette: 5: Black hot, white hot, red hot 1, red hot 2, red hot 3

Functions: Cross cursor, Image enhancement, Wifi, Zoom, Charging indicator, Active indicator

Power

Battery: Internal Li-ion battery, 3.7V, 3200mAh

Working Time: ≥5h

Adapter: Standard USB power adapter, max 10W

Interface

USB: Charging

Video Ouput: MCX Connector, PAL/NTSC

Environment Characteristics

Working Temperature: -10℃~50℃

Storage Temperature: -30℃~60℃

Humidity: 10%~95%

Shock: 10Hz~150Hz~10Hz 0.15mm IEC60068-2-6

Encapsulation: IP66

Weight: 375g

Size: 168mm×67mm×62mm

Standard Accessories: thermal imager/ power adapter/ USB cable/ video cable /lens cap/ wrist strap/shoulder strap/soft drawstring bag/ user manual

Optional Accessory: 40mm extender lens（FOV:9.3°×7.0°）

Detection Range

Human: 1.8mx0.5m: 700m

Vehicle: 2.3mx2.3m: 1700m

Recognition Range

Human: 1.8mx0.5m: 350m

Vehicle:2.3mx2.3m: 700m
