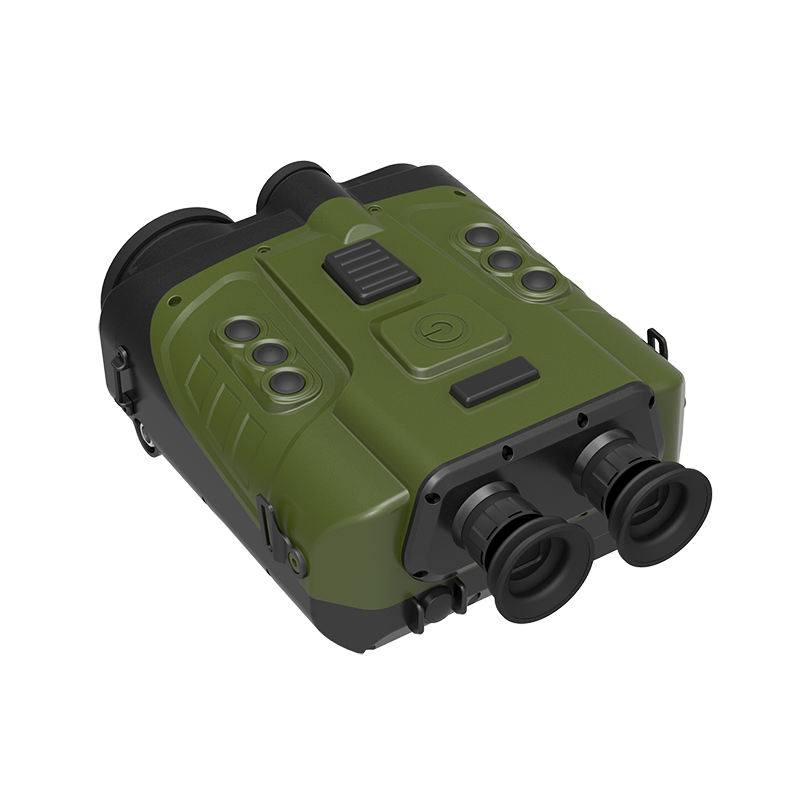

Infrared Thermal Imaging Camera
Detector Resolution: 640×512, 15μm
Spectral Range: 3~5μm
Focus: 30mm～240mm continues
FOV: 18.2°×14.6°～2.3°×1.8°(±5%)
Visible Camera
Focus: 3.63°×2.86°(±5%)
Resolution: 1920×1080
Working Range
Detection Range
1.8mx0.5m Human: >2km
2.3mx2.3m Vehicle: >4km
Recognition Range
1.8mx0.5m Human: >4km
2.3mx2.3m Vehicle: >7km
Function
Position Accuracy: ≤10m （GPS, BDS optional）
Orientation Accuracy: ±0.5°（Root Mean Square）
Ranging:
Eye-safe laser range finder
Maximum measuring range for a typical target of 2.3m×2.3m: 6Km For building: 10km
Range Accuracy: ≤±5m
Wi-Fi: Transfer digital video with Wi-Fi
Image Enhancement: Auto image filtering and sharpening
Brightness/Contrast: Auto/Manual
Polarity: White-hot, Black-hot, Red-hot, Green-hot, Rainbow, High contrast Rainbow, Blue-red, Amber
Digital Zoom: 2X
Video Storage: Built-in 16G SD card，no less than 9000 compress pictures (JPG) and no less than 2h video (AVI)
View Finder: OLED 1280×1024 , dioptry adjustment
Interface
Electrical Interface: power, video PAL (NTSC can customizable),communication Rs232、Wi-Fi、USB、built-in GP （external connection）
Mechanical Interface: 1/4 inch standard interface
Power
Power Input: 12V power adapter or 18650 battery, voltage input range 12V-32V
Continuous Working Time By Battery: ≥4h （do not change battery）
Environment Parameters
Working Temperature: －40°C～60°C （Except for display equipment）
Encapsulation: IP67
Electromagnetic Compatibility: GJB 151A-97
Physical Characteristics
Weight: ≤ 3.7kg （including battery）
Size: ≤ 315mm×250mm×118mm
