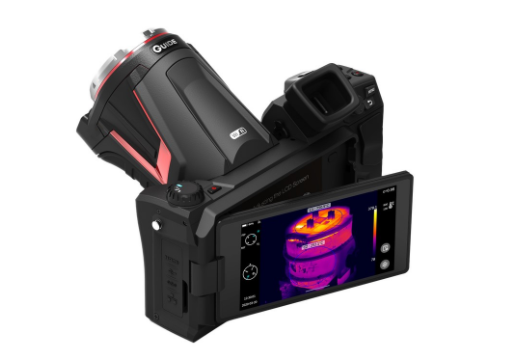

Guide PS400 High Performance Thermal Camera (384×288, 40°C~800°C)

IR Imaging Performance

Detector type:  384×288@17μm

Spectral: 7.5~14μm

Frame rate: 30Hz/9Hz

NETD: 45mk

Standard Lens*: 15mm/24.9°x18.7°/1.13mrad/0.15m

Wide Angle*: 7.78mm/48.1°x35.9°/2.19mrad/0.15m (option)

Telephoto*: 33mm/11.2°x8.4°/0.52mrad/2m (option)

Ultra-Telephoto*: 50.7mm/7.3°×5.5°/0.34mrad/4m (option)

Macro Lens#: 67mm/23.3mm*17.5mm/60.7μm (option)

High Temp@: 24.9°*18.7°

Focus: 1-touch fast autofocus, support electric/manual   focus switch

Measurement

Temp Measurement Range Support auto-switching, Filter 1:-40°C~150°C; 2:100°C~800°C; Optional 700°C~2000°C(High temperature lens required)

Accuracy ±2°C~±2%, whichever is greater ±1°C~±1%, whichever is greater

Temp Measurement Area (IR/PIP): spot × 12, line × 12, area × 12

Storage

Image Format Built-in 64G, external SD card supports up to 64G

Image Internal Storage Picture format JPG (with temperature information)

Video Format MP4 (without temperature information) or IRGD (with temperature information)

Standard Accessories:

Thermal Camera, Lens Cover, 2 Lithium Batteries, Power Adapter, Adapter Plug (5), TYPE-C to USB cable, Micro HDMI to HDMI cable, Network Cable, Quick Start Guide, User Manual, Data Download Card, SD Card (64GB), Shoulder Strap, Safety box, Calibration Certificate

Optional Accessories: Lithium Battery, Carrying bag, Cradle Charger, Bluetooth Headset, Extended Lens, Lens Bag
