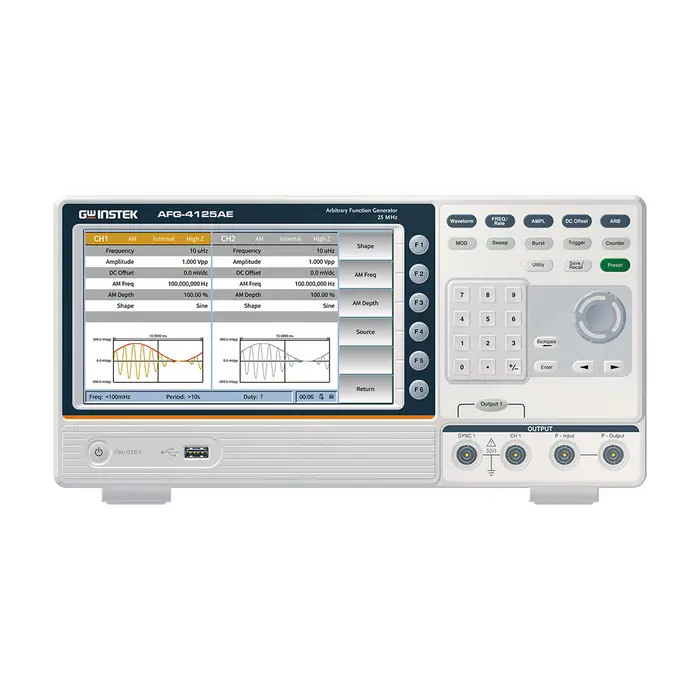

GW INSTEK AFG-4125AE Arbitrary Function Generator (1CH; 25MHz; 125 MSa/s; Built-In Amplifier)
Manufacturer: GW INSTEK Model: AFG-4125AE - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Number of Channels: 1
Display: 8-inch color LCD display
Touch Panel: No
Power Amplifier Function: Yes
Communication Interface: USB Host, USB Device
Waveforms: Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic wave, Arbitrary wave
Arbitrary Functions:
+ Sample Rate: 125 MSa/s
+ Repetition Rate (Arbitrary wave): 15 MHz
+ Waveform Length: 2 to 16K points
+ Amplitude Resolution: 14 bits
+ Minimum Rise and Fall Time: < 10 ns
+ Jitter: 8 ns
+ Non-Volatile Memory: 32 MB
Frequency Characteristics:
+ Sine: 25 MHz
+ Square: 5 MHz
+ Pulse: 5 MHz
+ Triangle, Ramp: 1 MHz
+ Noise (-3dB): 25 MHz BW
+ Harmonic Wave: 12.5 MHz
+ Resolution: 1 μHz or 10 digits
+ Accuracy Stability: ±2 ppm at 25°C±5°C
+ Aging: ±1 ppm, per 1 year
+ Tolerance: ±1 ppm
