TYPE

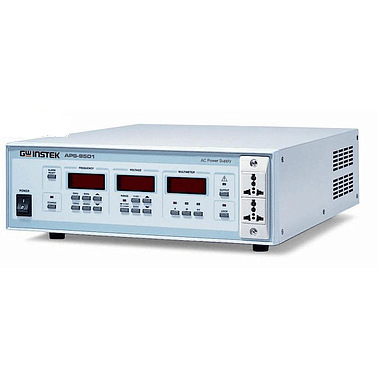

	APS-9301	APS-9501	APS-9102
OUTPUT CAPACITY
	300VA	500VA	1kVA
OUTPUT VOLTAGE
	0.0 ~ 300.0VAC, 0.1V/step (110V/220V selectable)
OUTPUT MAX. CURRENT
0~150V 0~300V	2.6Arms 1.3Arms	4.2Arms 2.1Arms	8.4Arms 4.2Arms
FREQUENCY
	45.0~500.0Hz (50Hz/60Hz selectable) 0.1Hz/step (45.0Hz~100.0Hz), 1Hz/step (100.0Hz~500.0Hz)
WAVEFORM
	Sine wave, 0~150V the above 22V < 0.5% THD (resistance load) 0~300V the above 44V < 0.5% THD (resistance load)
LINE VOLTAGE REGULATION
	< 0.1%
LOAD REGULATION
	+ 0.5% + 0.1V
SAVE/RECALL
	4 settings, Save/Recall operated by hand
PROTECTION
	Short-circuit protection, panel-lock, over temperature protection, current overflow protection
MEASUREMENT
	Range	Resolution	Accuracy
Frequency Counter	0.0~999.9Hz	0.1Hz	+ 0.1Hz
RMS Volt-Meter	0.0~380.0V	0.1V	+ (1%rdg + 0.1V)
RMS Amp-Meter	0.000~2.000A 1.80~35.00A	1.0mA 0.01mA	+ (1%rdg + 5mA) + (1%rdg + 20mA)
Wattage Meter	0.0~360.0W 320.0~3500.0W	0.1W 1.0W	+ (1.5% of rdg + 5digits) + (1.5% of rdg + 5digit)
POWER SOURCE
	AC 115V/230V+15%, 47 ~ 63Hz, single phase
OPERATION TEMPERATURE/HUMIDITY
	0°C ~ +40°C ; <80% (non-condensing)
DIMENSIONS
	430(W) x 137(H) x 500(D) mm
WEIGHT
	Approx. 20kg	Approx. 25kg	Approx. 35kg
