Meter CH1,CH2
Voltage: 0-32V
Current: 0-3A
Voltage Resolution 10mV
Current Resolution 1mA
Setting Accuracy
Voltage±(0.1% of reading +30mV)
Current±(0.3% of reading +6mA)
Readback Accuracy
Voltage±(0.1% of reading +30mV)
Current±(0.3% of reading +6mA)
Constant Voltage Operation
Line Regulation ≦0.01%+3mV
Load Regulation ≦0.01%+3mV(rating current ≦3A)
≦0.02%+5mV(rating current ＞3A)
Ripple & Noise ≦1mVrms(5Hz~1MHz)
Recovery Time ≦100μs(50% Load Change, minimum load 0.5A)
Constant Current Operation
Line Regulation ≦0.2%+3mA
Load Regulation ≦0.2%+3mA
Ripple & Noise ≦3mArms

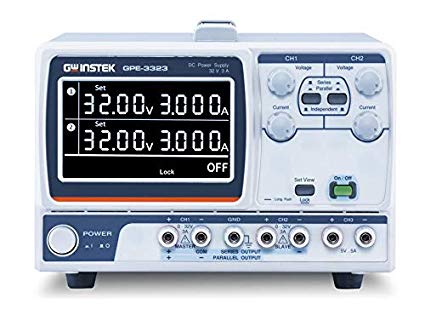

CH3 Operation for (GPE-3323)
Output Voltage 5.0V, ±5%
Output Current 5A
Line Regulation ≦ 3mV
Load Regulation ≦ 5mV
Ripple & Noise 1mVrms(5Hz~1MHz)
Analog Control Interface (Remote I/O)
V / I Check key
4.3 Inch LCD Display
Power Source: AC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz
Dimensions & Weight 210(W)x 155(H) x 306(D) mm ; Approx. 7kg
Accessories :
User Manual (CD) x 1 ; Power Cord x 1
Test Lead GTL-104 x 3 ; or European GTL-204A x 3
