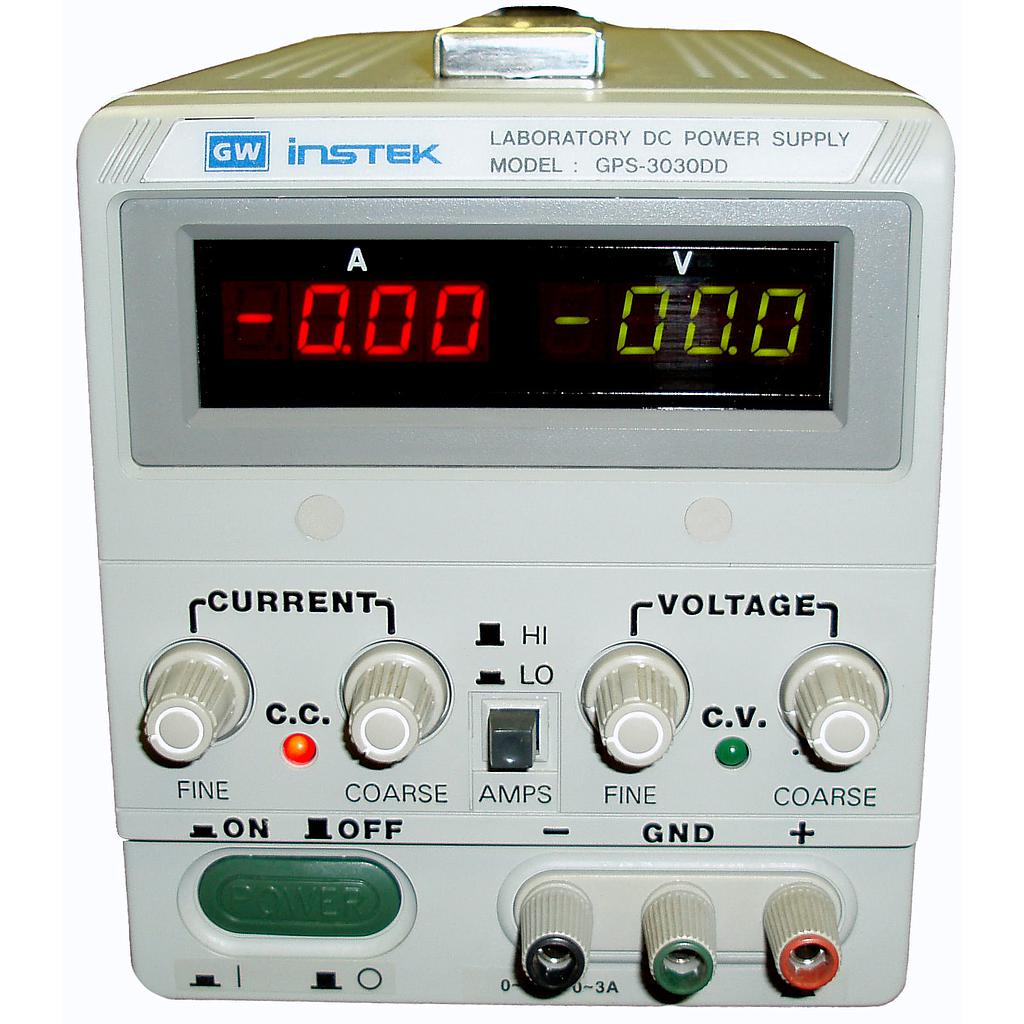

GW instek GPS-3030DD Linear D.C. Power Supply (30V, 3A, 90W)

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Model: GPS-3030DD
Warranty: 12 months
Manufacturer: Gwinstek - Taiwan
Origin: Shanghai- China
Accessories: Test lead GTL-105A x 1 or GTL-104A x 1;  User manual x 1, Power cord x 1
DC OUTPUT

Output Volts (V)
Output Amps (A)
GPS-3030DD
0 ~ 30
0 ~ 3
CONSTANT VOLTAGE OPERATION
Regulation Line regulation≦0.01% + 3mV
Load regulation≦0.01% + 3mV (rating current≦3A)
Load regulation≦0.01% + 5mV (rating current > 3A)
Ripple & Noise ≦0.5mVrms 5Hz ~ 1MHz (rating current≦3A)
≦1mVrms 5Hz ~ 1MHz (rating current > 3A)
Recovery Time ≦100μS ( 50% load change, minimum load 0.5A )
Temp. Coefficient ≦300ppm/°C
Output range 0 to rating voltage continuously adjustable
CONSTANT CURRENT OPERATION
Regulation Line regulation≦0.2% + 3mA
Load regulation≦0.2% + 3mA
Ripple Current ≦3mArms
Output Range 0 to rating current continuously adjustable (Hi/Lo range switchable)
METER
Digital
31∕2 digital 0.39" LED display (3030DD)
Accuracy ±(0.5﹪of rdg + 2 digits)
INSULATION
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
POWER SOURCE
  AC 100V/120V/220V/240V±10%, 50/60Hz
ACCESSORIES
  User manual x 1
Power cord x 1
Test lead GTL-105 x 1
European test lead GTL-201A (optional)
DIMENSIONS & WEIGHT
  128(W) x 145(H) x 285(D)mm
Approx. 5kg
