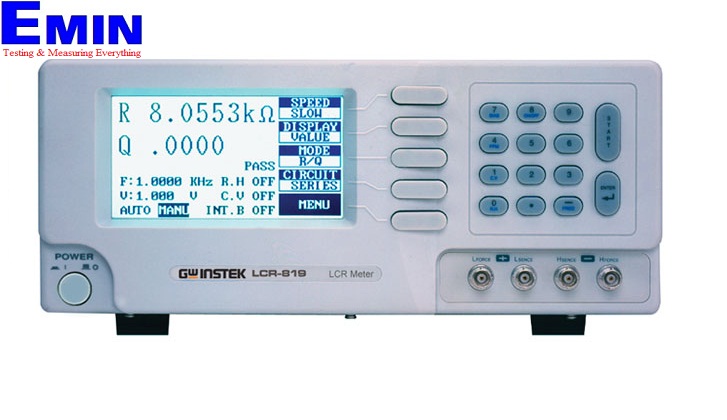

| Instek LCR-800 Series Specifications | |
| TEST FREQUENCY | |
| 12Hz ~ 200kHz (504 steps) for LCR-821 12Hz ~ 100kHz(503 steps) for LCR-819/829 12Hz ~ 10kHz(489 steps) for LCR-817/827 100Hz ~2kHz (245 steps) for LCR-816/826 | |
| BASIC ACCURACY (*) | |
| 0.05% for basic accuracy for LCR-821/819/817 0.1% for basic accuracy for LCR-829/827/826/816 | |
| TEST SPEED | |
| 68ms for LCR-821/819/817/816, 34ms for LCR-829/827/826 | |
| TEST SIGNAL LEVELS | |
| 5mV ~ 1.275Vrms ( 5mV/step ) for LCR-821/819/829/817/827 0.1V ~ 1.275Vrms ( 5mV/step )for LCR-816/826 | |
| DC BIAS | |
| Internal | 2V |
| External | 0 ~ 35V for LCR-821; 0 ~ 30V for LCR-819/829/817/827/816/826 |
| DISPLAY RANGE (**) | |
| Resistance | R 0.00001Ω ~ 99999kΩ |
| Capacitance | C 0.00001pF ~ 99999uF |
| Inductance | L 0.00001mH ~ 99999H |
| Quality Factor | Q 0.0001 ~ 9999 |
| Dissipation Factor | D 0.0001 ~ 9999 |
| Impedance | |Z| 0.00001Ω ~ 99999kΩ for LCR-821 |
| Phase Angle (Degree) | θ -180.00° ~ 180.00° for LCR-821 |
| TEST MODE | |
| R/Q, C/D, C/R, L/Q, Z/θ, L/R for LCR-821 only | |
| EQUIVALENT CIRCUIT | |
| Parallel or series selectable | |
| MEMORY | |
| 100 memory blocks total | |
| AVERAGE | |
| 1 to 255 times | |
| AVERAGE | |
| 1 to 255 times | |
| TEST SPEED MODE | |
| SLOW, MEDIUM and FAST | |
| DISPLAY MODE | |
| Value, △, △% | |
| DISPLAY | |
| 240 x 128 dot matrix C.C.F.L back light LCD | |
| INTERFACE | |
| Standard : RS-232C for LCR-821 Standard : Handler Interface for LCR-829/827/826 Optional : RS-232C Interface for LCR-819/817/816 (Including LCR-Viewer Software for RS-232C interface) | |
| POWER SOURCE | |
| Line Voltage Range | 100V - 240V, 47-63Hz/400Hz |
| DIMENSIONS & WEIGHT | |
| 330(W) x 149(H) x 437(D)mm Approx. 5.5kg | |
