Manufacturer: GW-INSTEK

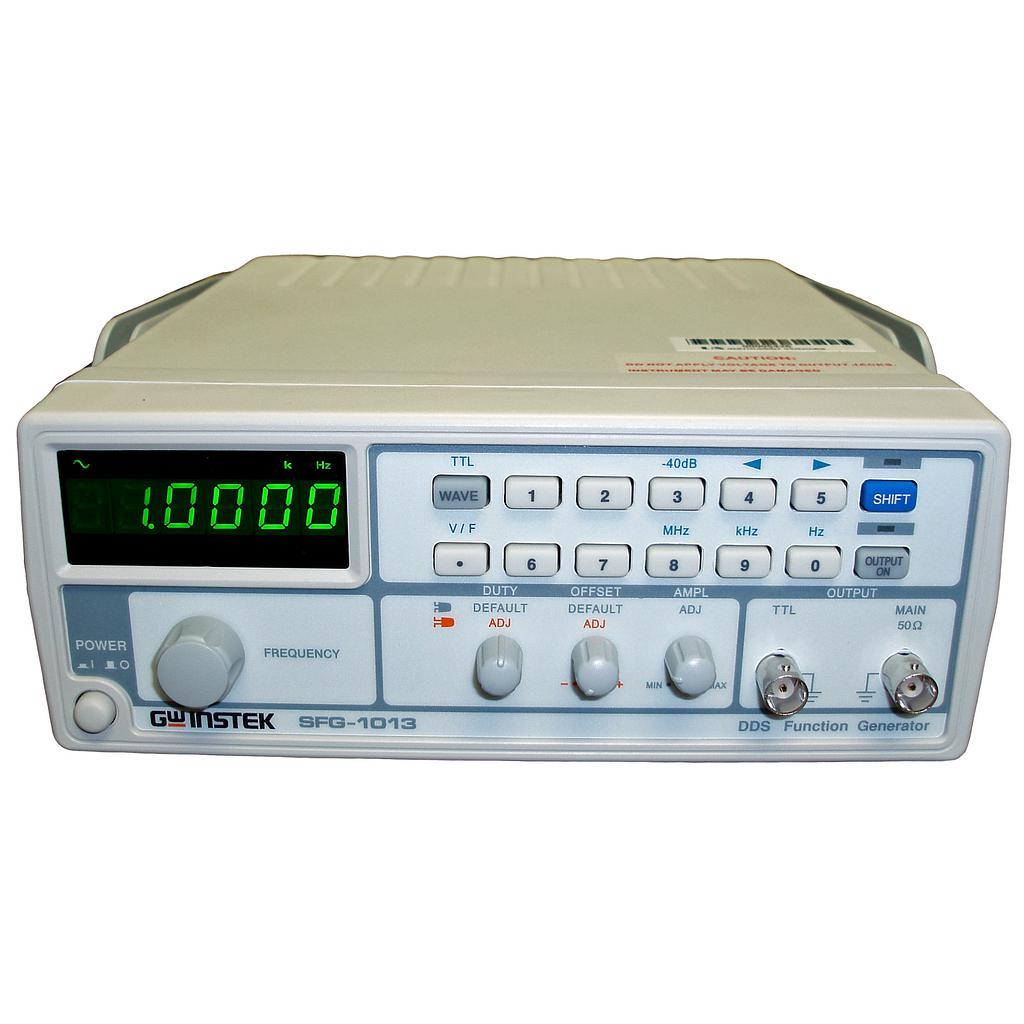

Model: SFG-1013
Dimensions: 251(W) x 91(H) x 291(D) mm
Weight: 2.1 kg
Accessories: User Manual×1; Power Cord x 1; GTL-101 x 1; GTL-101× 1
POWER SOURCE: AC 100V/120V/220V/240V±10%, 50/60Hz
Warranty: 12 months
Voltage Display
- Main
Frequency Range
Sine, Square : 0.1Hz ~ 3MHz
Triangle: 0.1Hz~1MHz
Frequency Resolution 0.1Hz
Frequency Stability ± 20 ppm
Frequency Accuracy ± 20 ppm
Aging ± 5 ppm /year
Output Function Sine, Square, Triangle
Amplitude Range 10Vpp, ±20%
Impedance 50Ω±10％
Attenuator -40dB±1dB×1
DC Offset ＜-5V～＞+5V(50Ω Load)
Duty Cycle 25% ~ 75% below 1MHz (for square wave only)
Display 6 LED display
- SINE WAVE
Harmonics Distortion ≧-55dBc, 0.1Hz ~ 200kHz
Flatness(Relative to 1kHz) : ＜±0.3dB, 0.1Hz ~ 1MHz
- TRIANGLE WAVE
Linearity ≧98％,0.1Hz～100kHz;≧95％,100kHz～1MHz
- SQUARE WAVE
Symmetry 5% of period+4ns, 0.1Hz ~ 100kHz
Rise or Fall Time ≦100ns at maximum output (into 50Ωload)
- TTL Output
Level ≧3Vpp ; Fan out; 20 TTL Load ;Rise and Fall Time ≦25ns
