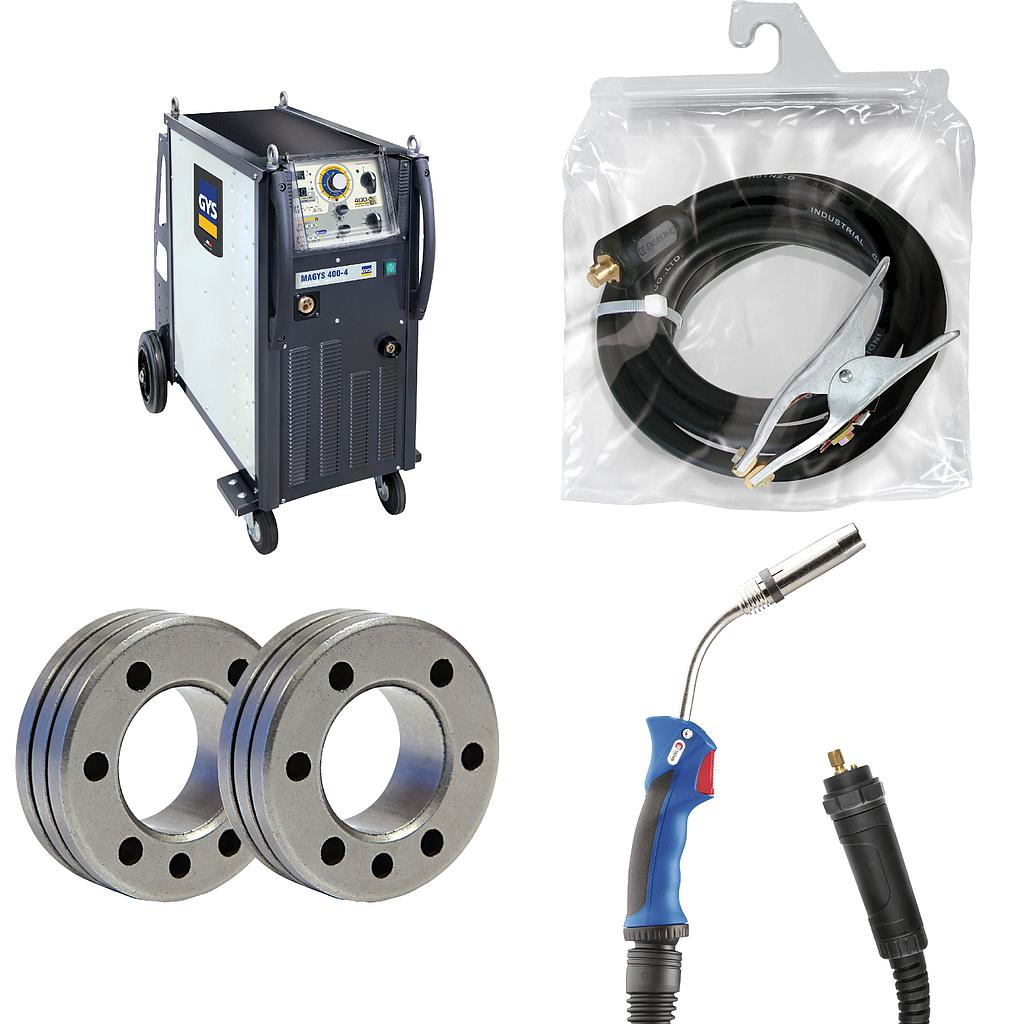

1. MAGYS 400-4
The MAGYS 400-4 is a « synergic » 3-Phase, Compact MIG/MAG welder. Its heavy duty construction and high duty cycle make it ideal for industrial environments welding steel, stainless-steel and aluminium. Equipped with a 75W wire feeder and 4 drive rollers, it is perfectly suited for intensive works up to ø1.2.
4 MODES:
- 2T / 4T
- Spot: Welding with adjustable spot diameter
- Delay: Intermittent welding mode
SYNERGIC OR MANUAL
More than 1000 parameters managed by micro processor.
- Synergic mode: The wire speed parameters can be set up directly and easily for an optimum result by just setting-up:
• The wire type
• The wire diameter
• The power, with its two switches
MAGYS 400-4 will automatically control:
• Optimum wire speed
• The pre-gas / post-gas
• Burn back
- Manual mode: Enables manual control of the wire speed
HEAVY DUTY DESIGN AND ENGINEERING
- Wire feeder and 4 drive rollers
- Robust build to suit industrial requirements
- Gas bottle support up to 10m³ (50l)
- 4 eye bolts for lifting the machine
- Heavy duty reinforced wheels for good mobility
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 20 A
Normal current output: 40-350 A
Duty cycle (environment temp. at 40°C):
350 A / 31.5 V @ 50%
320 A / 30 V @ 60%
320 A / 30 V @ 100%
Motor speed: 1 - 24 m/min- 4 motored rollers
Supported wire reels Ø200-300 mm
Wire diameter:
Steel, inox: 0.6 - 1.2 mm
Aluminum: 1.0 - 1.2 mm
Voltage positions switch: 20
No-load voltage: 17/43 V
Protection level: IP 23
Dimensions (L x w x h): 50 x 105 x 98 cm
Weight: 130 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 1.0/1.2 - C (Steel, inox)
2. Roller type C: original equipment (steel/ inox): Ø1.0/1.2
3. Roller type C: Ø 1.0/1.2- aluminum- 042162
4. Earth clamp with cable 400 A - 4 m - 047853
5. Torch MIG/MAG GRIP (Aluminum), 350A-3m- 040731
