Main technical parameters
Capacity (Optional): High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (switchable): Kpa, psi, kg/cm^2
Accuracy: ± 0.5%
Pressure Range: 250~5600kpa
Speed of Compression: High Pressure 170± 10ml/min
Specimen Clamping Force: >690kpa
Oil: 85% Glycerin; 15% Distilled Water
Sensing method: Pressure Transmitter
Indicating Method & Display: LCD
Material of the Ring: Stainless Steel SUS304
Opening in Upper Clamp: 31.5 ± 0.05 mm Diameter
Opening in Lower Clamp: 31.5 ± 0.05 mm Diameter
Motor: Anti-vibration Motor 1/8 HP
Operation Method: Automatic
Dimension (L×W×H): 445×425×525 mm
Weight: Approx. 70 kg
Power: AC220± 10%, 50 Hz
Power Capacity: 120W
Standard Configuration: Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
Optional Configuration: Printer, Air Pump
Design standard:JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
Specifications
1.Anti-vibration Motor 1/8 HP
2.Operation Method:Automatic
3.paper,cardboard testing
The usage:

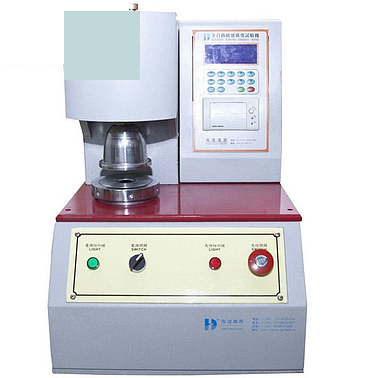

Film Bursting Testing equipment is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
The Character:
it is applicable to test bursting strength for paperboard.
Advanced micro computer controller and digital processor ensure result precise.
Printer facility and fully detailed test reports.
Results of the tests are stored for viewing or for printing out as required.
User-friendly menu interface
Power protection ensure automatic record when power cut off.
Uses: Bursting strength tester is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.
