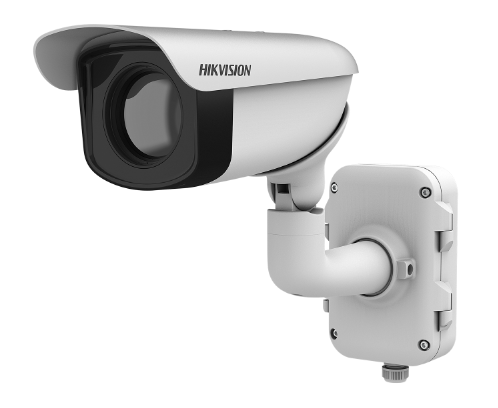

Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Pixel Interval: 17 μm
Response Waveband: 8 μm to 14 μm
NETD: less than 40mk (@25°C,F#=1.0)
Lens (Focal Length): 75 mm
MRAD: 0.23 mrad
Field of View : 8.3° × 6.64° (H × V)
Min. Focusing Distance: 8 m
Aperture: F 1.0
Smart Function
VCA (Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range: -20 °C to 150 °C (-4 °C to 302 °F)
Temperature Accuracy: ± 8 °C (14.4 °F)
Fire detection: Dynamic fire point detection, up to 10 fire points detectable.
Integration
Alarm Input: 2-ch inputs (0-5V DC)
Alarm Output: 2-ch relay outputs, alarm response actions configurable
SD Memory Card: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 64G), support manual/alarm recording
General
Menu language: English
Power: 24 VAC± 25%, 12 VDC± 20%, two-core terminal block
Power Consumption: 24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 8W (22W with De-icing Heater On)
Working Temperature/Humidity: -40 °C to 65 °C (-40 °F to 149 °F), 90% or less
Protection Level: IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions: 535mm × 400mm × 171mm (21.06" × 15.75" × 6.73")
Weight: Approx. 6.40 kg (14.11 lb)
