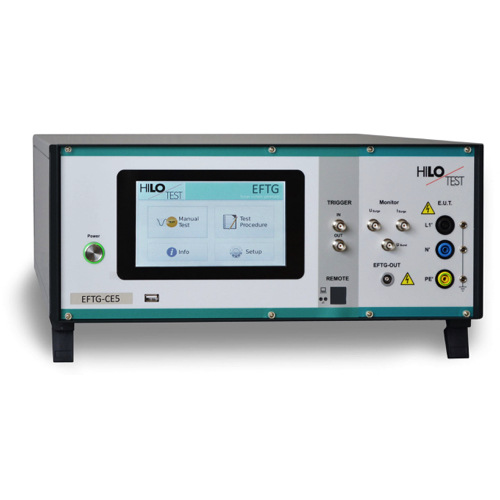

HILO-test EFTG-CE5 Compact EMC-Tester (7 kV, 1.2 / 50 μs; 3.5 kA, 8 / 20 μs)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External trigger input/output: Switch / 10 V

Connector for external safety interlock loop: 24 V =

External red and green warning lamps: 24 V =, 40 mA

Mains power: 90 V – 264 V, 50/60 Hz

Dimensions of desk top case (W * H * D): 450*180*500 mm³

Weight: 25 kg

Internal Coupling/Decoupling Network (CDN)

Type: 1-phased de-/coupling network

For power supply lines: L1, N, PE

Nominal voltage/current: 300 V, 16 A ac ≈ / 300 V, 16 A dc =

Coupling impedance (depending on the generator): 33 nF / 18 µF / 9 µF + 10 Ω

BURST (IEC 61000-4-4: 2012)

Pulse output voltage, adjustable: 0.2 – 5 kV ± 10 %

Waveform: 5/50 ns

Source impedance: 50 Ω

Polarity (selectable): pos/neg/alt

Burst frequency, adjustable: 1.0 kHz – 1.0 MHz

Burst duration, adjustable: 0.01 ms – 25 ms

Burst period, adjustable: 10 ms – 1000 ms

HV output for external coupling devices: coaxial

Monitor output for pulse output voltage: ratio = 100:1 ± 5 %, 50 Ω
