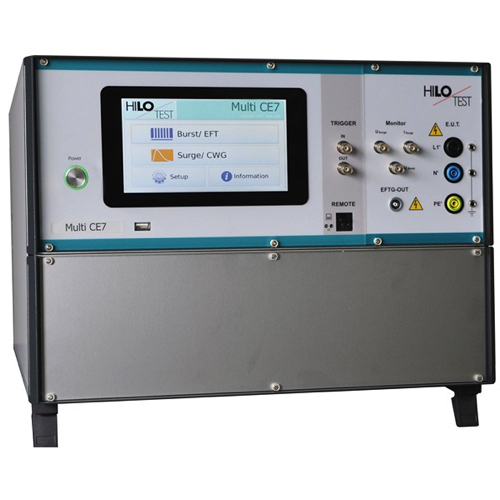

HILO-test PG 6-364 High Voltage Pulse Generator (0.2 – 6.3 kV)

Mainframe:

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External Trigger input / output: Switch / 10 V

Connector for external safety interlock loop and external red and green warning lamps acc. to VDE 0104: 24 V=, 40 mA

Mains power: 230V, 50/60 Hz

Dimensions (desk top case W * H * D): 450 * 330 * 500 mm³

Weight: 35kg

High-Voltage Pulse Generator:

Impulse output voltage, adjustable ± 10%: 0.2 – 6.3 kV

Output polarity, selectable: pos / neg /alt

Charging time: < 15 sec

Impulse voltage outputs of the rear panel: coaxial

Resistor in series to the output RS: 0 Ω / 25 Ω / 25 Ω

Impulse voltage divider, built-in: v= 1000:1 ± 2 %, 50 W

Trigger:

a) manual push button

b) external Trigger input switch

c) internal automatic

Waveform of impulse output voltage: Selectable

Surge waveform, acc. CCITT / ITU-T K22, IEC: 1.2/50µs | 10/700µs

Energy storage capacitor CS: 1.0 µF | 20 µF

Max. stored energy WE: 20 J | 400 J

Discharging resistor RE: 76 Ω | 50 Ω

Damping Resistor RD: 13 Ω| 15 Ω

Load capacitance CB: 0.03 µF | 0.2 µF
