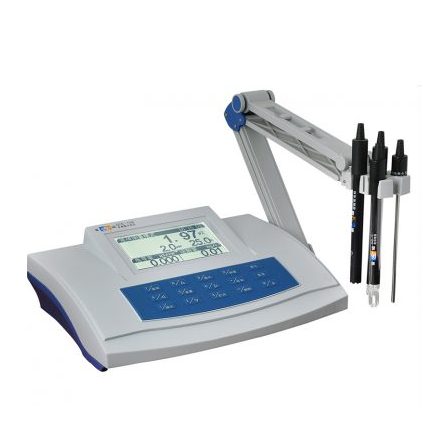

HINOTEK DZS-706 Multi-Parameter Water Meter

Range:

pH/pX: (-2.00 – 20.00) pH/pX

ORP: (-1999.9-1999.9) mV

Ion Conc.: (0-19990), Unit : µg/L, mg/L. g/L, mol/L, mmol/L

Conductivity: 0.000µS/cm-199.9 mS/cm

Resistivity: 5.00Ω.cm – 20.00MΩ.cm

TDS: 0.000 mg/L – 100g.L

Salinity: (0.00 – 8.00) %

DO: (0.00 – 19.99) mg/L

DO Saturation: (0.0 – 199.9)%

Temp: (-5.0 – 105.0) ºC

Resolution:

pH/pX: 0.01pH/pX

ORP: 0.1mV

Conductivity: 0.001µs/cm

Resistivity: 0.01Ω.cm

TDS: 0.001mg/L

Salinity: 0.01%

DO: 0.01ml/L

DO Saturation: 0.01%

Temp.: ±0.2ºC

Basic Error:

pH/pX: ±0.01pH

ORP: ±0.1%FS

Ion Conc.: ±0.5%

Conductivity: ±1.0%FS

Resistivity: ±1.0%FS

TDS: ±1.0%FS

Salinity: ±0.2%

DO: ±0.10mg/L

DO Saturation: ±2%FS

Temp.: ±0.2ºC

Power Supply: AC/DC Adapter (Input: 100-240V,50/60Hz 0.5A Output: 9V, 0.8A

Dimension (mm) & Weight (kg): 370*305*330;5

Standard Configuration: Two-in-one pH Combination electrode; DJS-1C Platinum black conductivity electrode; DO-958-S DO probe; T-818-B-6 ATC probe pH buffer

It can measure pX/pH, ORP, conductivity, TDS, salinity, Resistivity, dissolved oxygen, saturation and temperature.

 It adopts LCD display and Chinese operation interface.

It has manual/automatic temperature compensation.

It provides zero oxygen and full scale calibration.

When the meter measures conductivity, it can switch frequency automatically to guarantee measuring accuracy.

 It has power failure protection functions.
