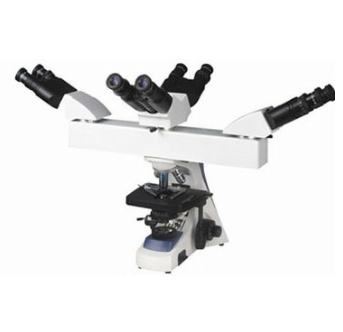

HINOTEK SZ-608A Multi-viewing Microscope

Viewing Head: Compensation Free Free Binocular Head, Inclined at 30°; 4-Teaching binocular head （55mm-75mm）

Eyepiece: WF10×/22mm

Objective: Infinity Achromatic Objective;4×10×40×(s)100×(s)Oil

Stage: Double layer mechanical stage; Stage Size:180mm×150mm; Moving Range:75mm×50mm

Condenser: N.A.1.25 Abbe condenser with iris diaphragm and filter

Focusing: Coaxial coarse & fine focusing adjustment; Fine focusing scale value 0.002mm

Light Source: Halogen Bulb 12V30W. AC85V-230V Adjustable brightness

Illuminator: High-light Kohler illumination

Optional Accessory

- Eyepiece：WF16×, WF20×.

- Infinity Plan Objectives：20×, 60 (s)

- INFINITY Plan Achromatic Objectives:4×10× 20× 40×(s)60×(s)100×(s)Oil

- Another model base frame is available Compensation Free Binocular & Trinocular

- Head (48mm-75mm)

- LED cursor(Pointer)
