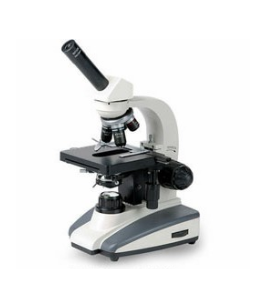

HINOTEK XSP-136F Biological Microscope (4X-100X)

Viewing Head: Monocular Inclined at45°,360°Rotatable

Eyepiece: WF10X

Objective: Achromatic 4X, 10X, 40X(S), 100X(S) Oil

Stage: Double layers mechanical stage; Stage size: 140mm×140mm; Moving Range: 70mm×50mm

Condenser: N.A.1.25Abbe Condenser with iris diaphragm and filter

Focusing: Coaxial coarse & fine focusing adjustment Fine focusing scale value 0.002mm

Collector: High brightness collector and can be interconverted with Kohler illumination

Light Source: Halogen tungsten bulb 6V/30W.AC 85V-230V; Adjustable brightness

Optinal Accessory:

Eyepiece: WF16X, WF20X, P16X 1.3 Mega pixels CMOS electronic eyepiece .
Semi-plan objectives: 4X, 10X, 20X(S), 40(S), 60X(S), 100(S) Oil
