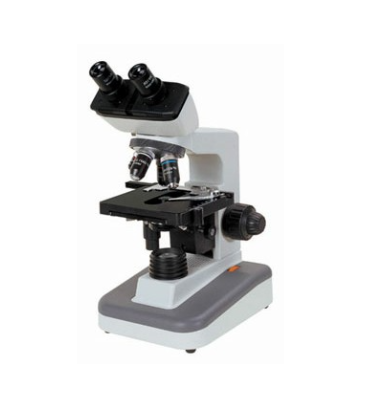

HINOTEK XSZ-127H Biological Microscope (4X ,10X ,40X(S),100X(S) Oil)

Viewing head: Sliding Binocular Head. Inclined at 45 ° ( 52mm -74mm )

Eyepiece: WF10X

Objective: Achromatic objective: 4X ,10X ,40X(S),100X(S)Oil

Stage: Double layers mechanical stage; Stage size: 140mm × 140mm; Moving range: 75mm × 50mm

Condenser: N.A1.25 Abbe condenser with iris diaphragm&filter

Focusing: Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm

Collector: High brightness light collector

Light source: Halogen tungsten bulb 6V/30W.AC 85V-230V; Adjustable brightness

Optional Accessory: Eyepieces: WF16x,WF20x,P16x1.3Megapixels CMOS electronic eyepiece..

Semi-plan objectives:4X,10X,20X(S),40(S),60X(S),100(S)Oil
