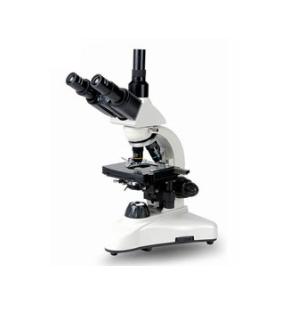

Viewing head: Compensation Free Trinocular Head.Inclined at 30°
Interpapillary Distance: 55mm -75mm
Eyepiece: WF10 ×
Objective: Achromatic objectives:4X,10X,40X(S),100X(S) Oil
Stage: Double layers mechanical stage; Stage size: 125mmx 130mm; Moving range: 75mm × 50mm
Condenser: Swing type N. A.1.25 Abbe condenser with iris diaphragm & filter
Focusing: Coaxial coarse & fine focusing adjustment with rack and pinion mechanism; Fine focusing scale Value 0.002mm
Collector: High brightness light collector
Light source: Halogen bulb 6V/20W AC 85-230V; Adjustable brightness
Optional Accessory:
Eyepieces: WF16x,WF20x,P16x
Plan-Objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Semi-plan objectives: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil
Photo and CCD attachment
