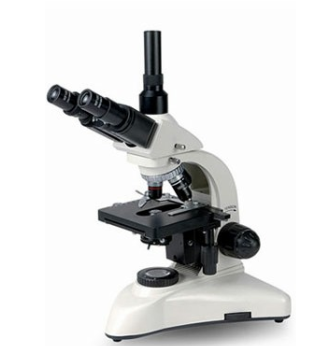

HINOTEK XSZ-156T Biological Microscope (4X-100X)

Viewing head: Compensation Free Trinocular Head 30°

Interpapillary Distance: 55mm -75mm

Eyepiece: WF10X

Objective: Achromatic objectives:4X, 10X, 40X(S), 100X(S) Oil

Stage: Double layers mechanical stage; Stage size: 140mm x 140mm; Moving range: 75mm × 50mm

Condenser: Swing type N. A.1.25 Abbe condenser with iris diaphragm & filter

Focusing: Coaxial coarse & fine focusing adjustment with rack and pinion mechanism; Fine focusing scale Value 0.002mm

Collector: High brightness Kohler illumination

Light source: Halogen bulb 6V/20W AC 85-230V

Optional Accessory:

Eyepieces: WF16x, WF20x, P16x

1.3 Mega pixel, CMOS electronic eyepiece

Plan-Objectives: 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S) Oil

Semi-plan objectives: 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S) Oil

Infinity objectives: 4X, 10X, 20X(S), 40X(S), 60X(S), 100X(S) Oil
