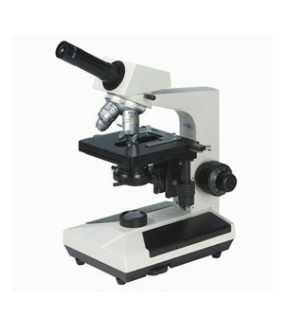

HINOTEK XSZ-208A Biological Microscope (4X-100X)

Viewing Head: Monocular Inclined at 45°, 360° Rotatable

Eyepiece: WF10X, 18mm

Objective: Achromatic 4X, 10X, 40X(S), 100X(S) Oil

Stage: Double layer mechanical stage; Stage Size:140mm × 140mm; Moving Range: 75mm × 50mm

Condenser: N.A.1.25 Abbe condenser with iris diaphragm and filter

Focusing: Coaxial coarse & fine focusing adjustment Fine focusing scale value 0.002mm;

Light Source: Halogen bulb 6V20W or 6V15W, AC 220V/110V; Adjustable light source with Kohler illumination

Optional Accessory:

Eyepiece: WF16X, WF20X, P16X

Objective: 20X, 60(S)

Semi-plan Objective: 4X, 10X, 20X, 40X(S), 60X(S), 100X(S) Oil

Plan Objective: 4X, 10X, 20X, 40X(S), 60X(S), 100X(S) Oil

Compensation Free Binocular & Trinocular Head (48mm-75mm)

LED illumination
