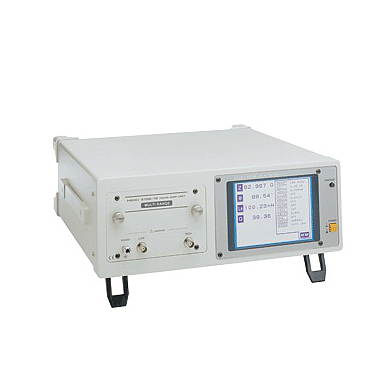

SPECIFICTIONS
- Measurement Items: |Z|, |Y|, Q, Rp, Rs(ESR), G, X, B, Θ, Ls, Lp, Cs, Cp, D(tan δ)
- Measurement ranges:
Z, R 100mΩ to 2kΩ 1kΩ to 20kΩ 10kΩ to300kΩ
C 0.66pF to 15.9µF 0.066pF to 1.59nF 4.4fF to 159pF
L 0.133nH to 3.18mH 1.33µH to 31.8mH 13.3µH to 477mH
Θ -180.00° to 180.00°
- Measurement frequency: 100 kHz to 120 MHz
- Basic accuracy:|Z|: ±0.5 % rdg. , phase angle: ±0.
- Output impedance: 50 ±10 ohm (at 100 kHz)
- Measurement signal level:
+ 5 mV to 1 V, 20 mA max. ( up to 10.00 MHz )
+ 5 mV to 500 mV, 10 mA max. ( above 10.01 MHz )
+ Setting Resolution: 1mV steps
+ 200 µA to 20 mA: 1 V max. ( up to 10.00 MHz )
+ 200 µA to 10 mA: 0.5 V max. (above 10.01 MHz)
+ Setting Resolution: 10 µA steps steps
- Measurement Time: 6 ± 1 ms (nominal)
- Functions:
Monitor Function, Limit Function, Average Trigger Function
Load Compensation Function, Key Lock Function, Comparator,
Classification ( BIN ) Measurement, Correlation,
Compensation Function, Panel Save and Load, Measurement Value Storage
Zoom Display Function, Continuous Measurements, Audible Beeper
Numerical Display, Digit Setting Function, Display Setting Functions, Printer Function
- Interface: GP-IB, RS-232C and EXT I/O ( standard )
- Power supply: 100 to 240 VAC, 50/60 Hz, 50 VA
- Dimensions, mass: Approx. 360W×130H×360D mm, 8.3 kg
- Supplied accessories: Power cord
- The warranty period: 12 month
| Measurement Items | |Z|, |Y|, Q, Rp, Rs(ESR), G, X, B, Θ, Ls, Lp, Cs, Cp, D(tan δ) | ||||||||||||||||||||
| Measurement ranges |
|
||||||||||||||||||||
| Measurement Frequency | 100 kHz to 120 MHz ( 100Hz to 100kHz steps ) | ||||||||||||||||||||
| Basic accuracy | |Z|: ±0.5 % rdg. , phase angle: ±0.3° | ||||||||||||||||||||
| Output Impedance | 50 ±10 ohm (at 100 kHz) | ||||||||||||||||||||
| Measurement Signal Level | 5 mV to 1 V, 20 mA max. ( up to 10.00 MHz ) 5 mV to 500 mV, 10 mA max. ( above 10.01 MHz ) Setting Resolution: 1mV steps 200 µA to 20 mA: 1 V max. ( up to 10.00 MHz ) 200 µA to 10 mA: 0.5 V max. (above 10.01 MHz) Setting Resolution: 10 µA steps |
||||||||||||||||||||
| Measurement Time | 6 ± 1 ms (nominal) | ||||||||||||||||||||
| Other function | Monitor Function, Limit Function, Average Trigger Function, Load Compensation Function, Key Lock Function, Comparator, Classification ( BIN ) Measurement, Correlation, Compensation Function, Panel Save and Load, Measurement Value Storage, Zoom Display Function, Continuous Measurements, Audible Beeper, Numerical Display, Digit Setting Function, Display Setting Functions, Printer Function | ||||||||||||||||||||
| Interfaces | GP-IB, RS-232C and EXT I/O ( standard ) | ||||||||||||||||||||
| Power | 100 to 240 VAC, 50/60 Hz, 50 VA | ||||||||||||||||||||
| Dimensions and Mass | Approx. 360W×130H×360D mm, 8.3 kg | ||||||||||||||||||||
| Supplied accessories | Power cord | ||||||||||||||||||||
Catalog
3535
product catalog.pdf (1.2 MB) (2006-04-27 updated)
