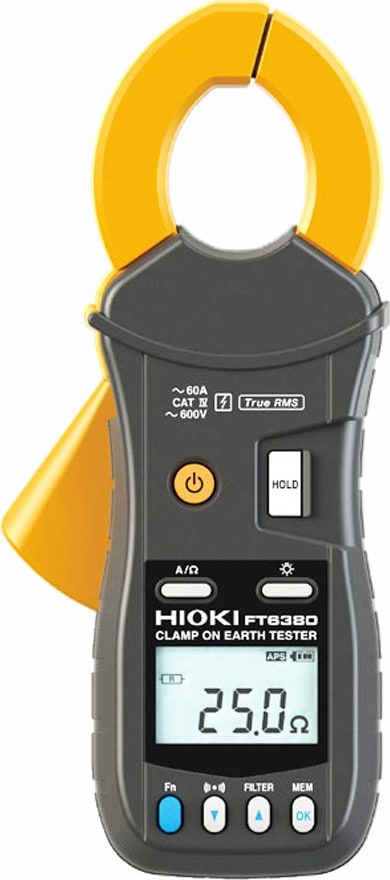

Manufacturer: Hioki Japan
Made in Japan
Warranty: 12 months
Earthing resistance: 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution)
Zero suppression: Less than 0.02 Ω,
Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current measurement: 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 and under (1.7 and under at 60 A range)
Max. allowable input AC 100 A continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency)
Max. rated voltage to earth: AC 600 V CAT IV
Memory function: 2000 data
Alarm function: For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold
Other functions: Data hold, Back light, Filter, Auto power save
Display: Digital LCD, max. 2000 dgt.,
Power supply LR6 (AA) alkaline batteries ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions)
Core jaw diameter: φ 32 mm (1.26 in)
Dimensions and mass: 73 mm W × 218 mm H × 43 mm D, 620 g
Accessories: Carrying case ×1, Resistance check loop ×1, Strap ×1, LR06 alkaline battery ×2, Instruction manual ×1
