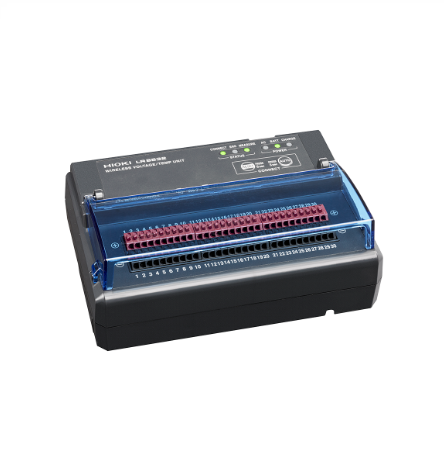

HIOKI LR8532 Wireless Voltage/Temp Unit

Connectable instrument: Memory HiLogger LR8450-01 (Wireless LAN model)

Control communications method:

Connect wirelessly via Wireless LAN Adapter Z3230 (included)

Wireless LAN (IEEE 802.11b/g/n)

Communication range: 30 m (line of sight)

Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES

Available number of channels: 1 to 11

Communications buffer memory: 4 M word (volatile memory)

Saves data in the event of a communications error. Data is resent when communications are restored.

Operating temperature and humidity: -20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C)

Storage temperature and humidity: -20°C to 60°C, 80% RH (no condensation)

Vibration resistance: JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent

LED display: Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status

Automatic connection function: Available

Included accessories: Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate)

Number of input channels: 30 ch (Able to set voltage or temperature using the thermocouple for each channel)

Input terminals: Push-button type terminal block (2 terminals per channel)

Measurement target: Voltage, temperature using the thermocouple

Input type: Scanning by semiconductor relays

All channels isolated
