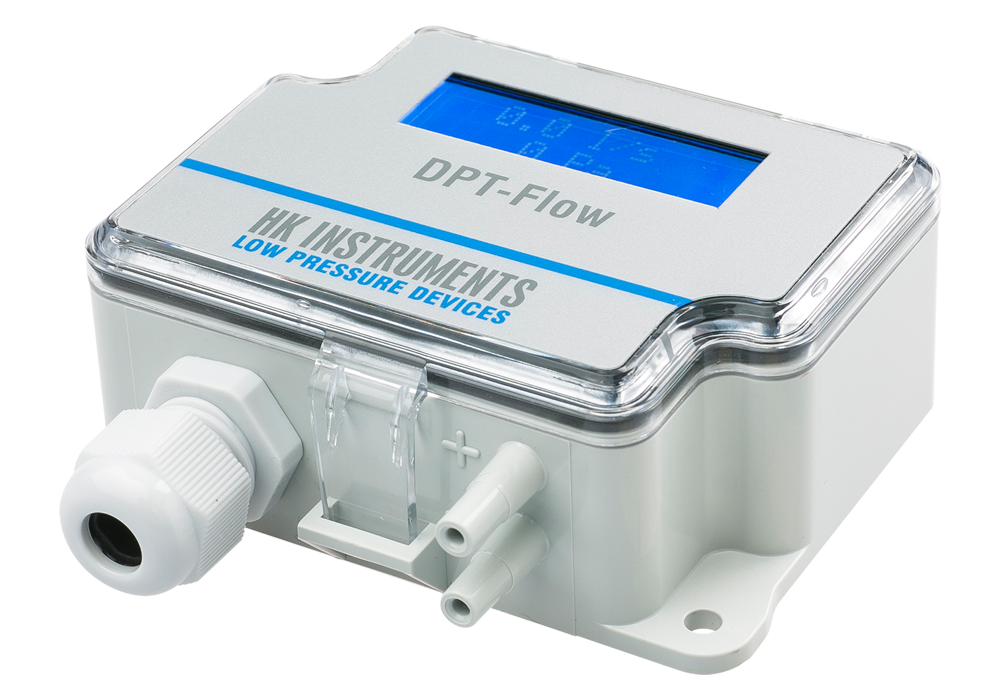

HK Instruments DPT-Flow-1000-AZ-D Air flow and velocity transmitter (0−1000 Pa; with display; AZ)
Manufacturer: HK Instruments Model: DPT-Flow-1000-AZ-D P/N: 102.001.002 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measurement ranges (Pa): 0−1000 Pa
Accuracy (from applied pressure): Pressure < 125 Pa = 1 % + ±2 Pa; Pressure > 125 Pa = 1 % + ±1 Pa
Zero point calibration: automatic with autozero element (-AZ) or by pushbutton
Measuring units: Pressure: Pa, kPa, mbar, inchWC, mmWC, psi; Flow: m3/s, m3/hr, cfm, l/s, m/s, ft/min
Supply voltage: 24 VAC ±10 % / 24 VDC ±10 %
Power consumption: < 1,0 W
Output signals for pressure and air flow (selectable by jumper): 0…10 VDC / 2...10 VDC; 4…20 mA
Operating temperature: -20…+50 °C (with autozero calibration -5...+50 °C); -40...+50 °C (-40C model)
Response time: 1...20 s
Protection standard: IP54
Datasheet- Quality Engagement
