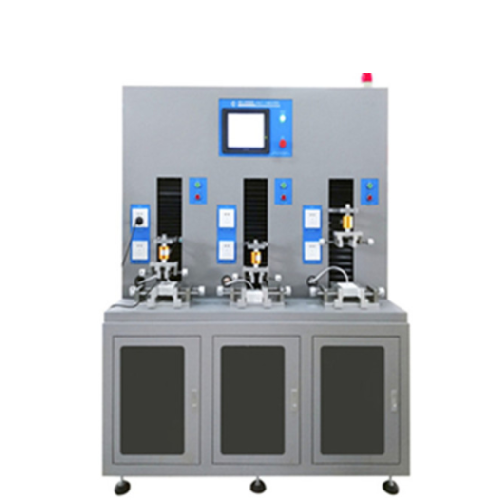

Test station: vertical independent three-station
Drive mode: PLC+ touch screen + servo motor
Plug and pull speed: 0-400mm/min
Force range: 0-500N
Maximum stroke displacement: 200mm (can be set)
Stroke displacement accuracy: 0.1mm
Fixture left and right stroke: 0-150mm
Power-on time: 0~999S can be set
Power off time: 0~999S can be set
Number of tests: 0~999999 times can be set
Time accuracy: ±0.1S
Detection mode: There is a load and mechanical life function selection
Frequency accuracy: ±1 time
Plug-in force monitoring: monitor the strength during the insertion and removal process, if the device exceeds the limit threshold, the equipment is stopped and protected
Output voltage: Each station is equipped with a five-hole power supply for the sample (socket) to take power
Power supply: AC 220V ± 10%, 50Hz 10A
