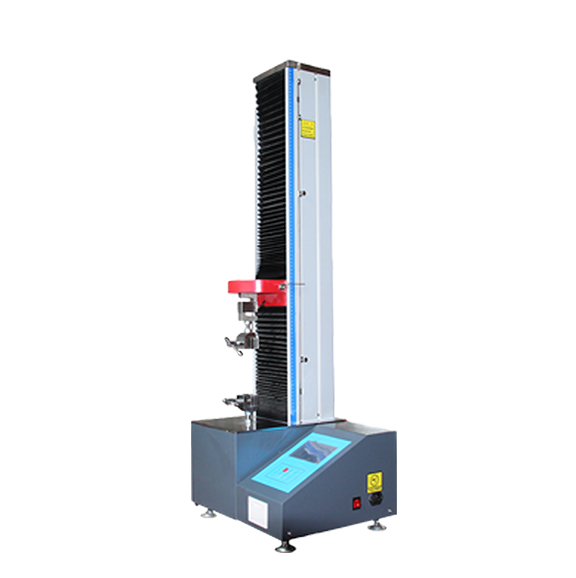

Structural Form: Gate Type
Max. Testing Force (KN): 1KN
Operation Mode: Digital LCD Displayer
Measuring Range: 2%-100% of the maximum testing force
Relative Error on Indicated Values of Testing Force: Better Than ±1% of the Indicated Value
Error on Deformation Display: ±1% (Optional ±0.5%)
Min. Force Resolution: 0.01N
Displacement Precision: ±1% (±0.5% Optional)
Deformation Accuracy: Better than ±1% (±0.5% Optional)
Speed Governing Range: 1-500mm/min
Testing Travelling Distance: >600 mm (can be customized according to needs)
Testing Space Adjusting Mechanism: AC Servo Motor, Drive by Synchronous Belt
Carried Standard: GB/T2611, ISO,ASTM,DIN
Protection Function: Overload Protection, Limit Protection
Power Supply: 220V
Weight (Approximate KG): 35KG/75KG
Clamp Type: Each One Piece of Standard Clamp for Tension Test and Compression Test (Optional Clamp If Needed;Special Clamp Can Also Be Customized for Customers)
