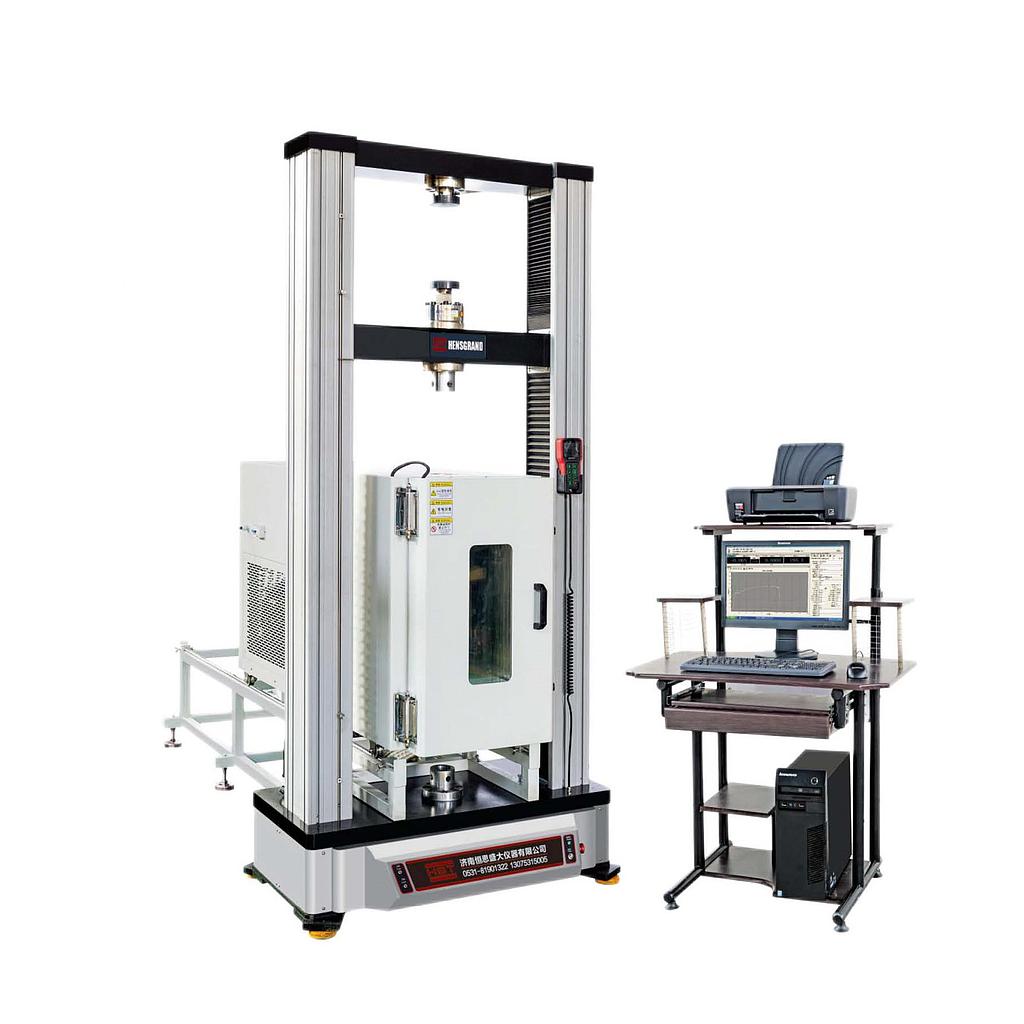

Testing Machine Specifications
Load Capacity (kN): 100
Load accuracy: Class 0.5
Testing Load Accuracy: ±0.5%
Testing Load Range(FS): 0.2%-100%
Load Resolution: 1/500,000FS
Deformation accuracy: ≤±0.5% of 0.4%~100% of rated capacity
Position resolution (mm):0.025μm
Position accuracy: ±0.02mm or 0.5% of displacement (whichever is greater)
Crosshead speed range (mm/min):0.001-500
Crosshead speed accuracy: ±0.5% of set speed (zero or constant load)
Crosshead Travel (mm): 1100
Room temperature Tensile Space (mm): 650
Room temperature Compression Space (mm): 1000
Room temperature Test width (mm): 550
Load cell: High-precision USA load cell
Position limit switch: Upper and lower lights
Power Supply: AC220V±10%, 50Hz/60Hz
Overall Dimensions (L*W*H, mm): According to the size of High and Low temperature test chamber
Weight (kg): According to the size of High and Low temperature test chamber
High and low temperature environmental test chamber Specifications
Operating temperature range: -40 -150℃
Cooling system: compressor
Temperature uniformity: < 200 ≤±2°C, ≥ 200 ≤±3,5°C
Temperature Fluctuation: ≤±1°C
Heating rate: 2-3℃/min
Power: 220V
Material of inner box: stainless steel
Outer box material: stainless steel
Heating system: Nickel-chromium alloy heating wire heater
Insulation Materials: Ultra-fine glass wool or rigid foam
Air supply circulation system: a: motor b: lengthened shaft c: centrifugal fan
Chamber Door: Monolithic door
Controller: Temperature Controller
Control panel: Rotary switch
Inside dimensions (mm): 350*260*400
Outside dimensions (mm): 1100*420*560
