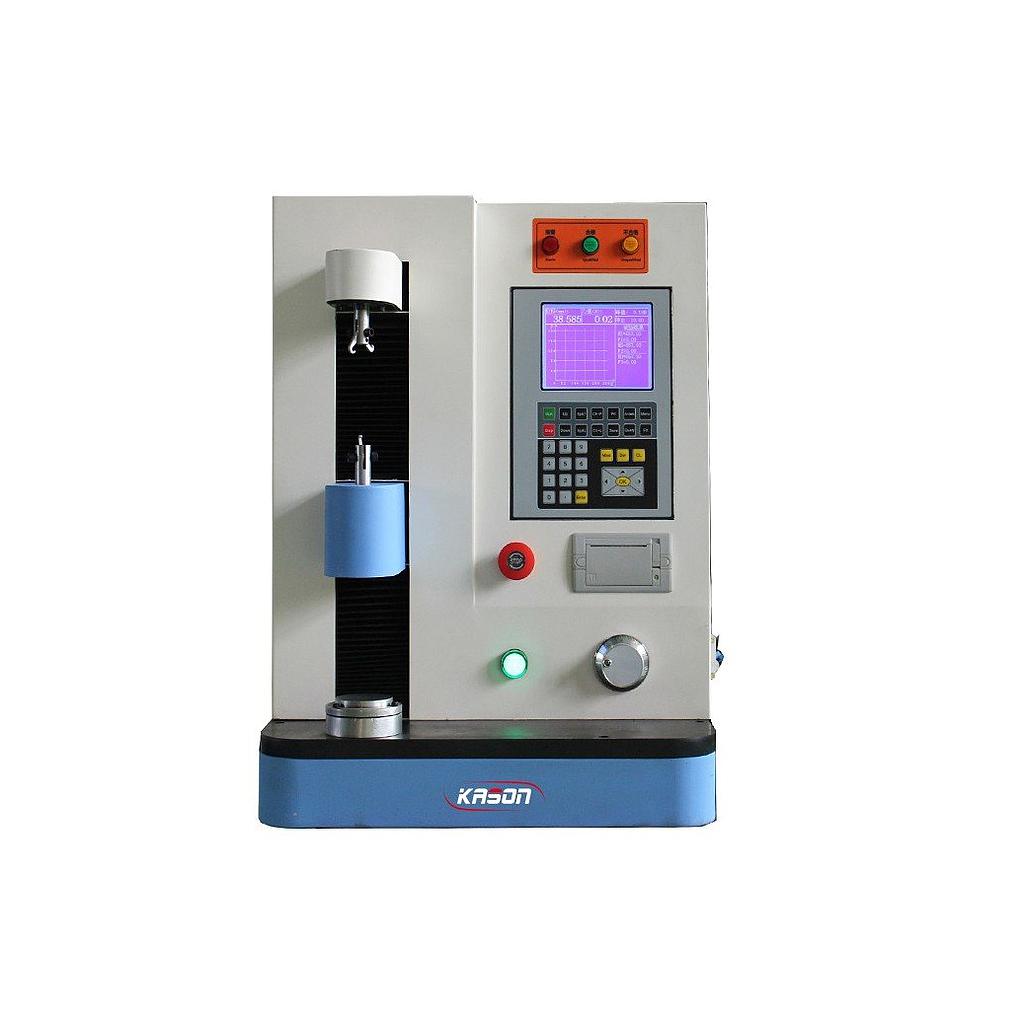

Application: designed and manufactured for the precision inspection for small springs in strict accordance with the industry standard of the Ministry of Machinery.
Capacity（KN）: 100
Max. Testing display value（N）: 0.1
Testing range: 1%—100%FS
Load display resolution: 1/1000000
Relative error of indication repeatability(%): ±0.5
Max. Read value of displacement（mm）: 0.001
Electronic handwheel (fine tuning): 0.01mm
Tensile/compression testing space(mm): 190
Standard pressure plate diameter (mm): 190
Testing speed（mm/min）: 0.01-500
Datasheet
Features:
★ Four test methods: fixed height measurement load, fixed load measurement height, fixed deformation measurement load, constant load measurement deformation;
★ High-speed acquisition rate can be achieved under the premise of ensuring accuracy, which greatly improves the test efficiency;
★ Repeatable batch detection can be set for a single type of spring, and whether the spring is qualified or not is indicated by an indicator light;
★ High degree of automated inspection, complete the entire test process in one click;
★ High precision, large range, and repeatability of force value;
★ Automatic judgment of data results, automatic analysis, real-time display;
★ Large amount of data storage, automatic storage, query and print;
★ The electronic handwheel is loaded slowly, which can realize small deformation movement;
★ Chinese operation interface, simple, intuitive, easy to learn and understand, easy to operate for people of different ages;
★ Triple protection: sensor overload protection, photoelectric limit protection, mechanical limit protection;
★ spray plastic sheet metal, beautiful appearance, upper grade;
★ High cost performance, can replace similar foreign models.
★ The display adopts industrial grade Touch Screen , which has long life, stable performance and wide viewing angle.
