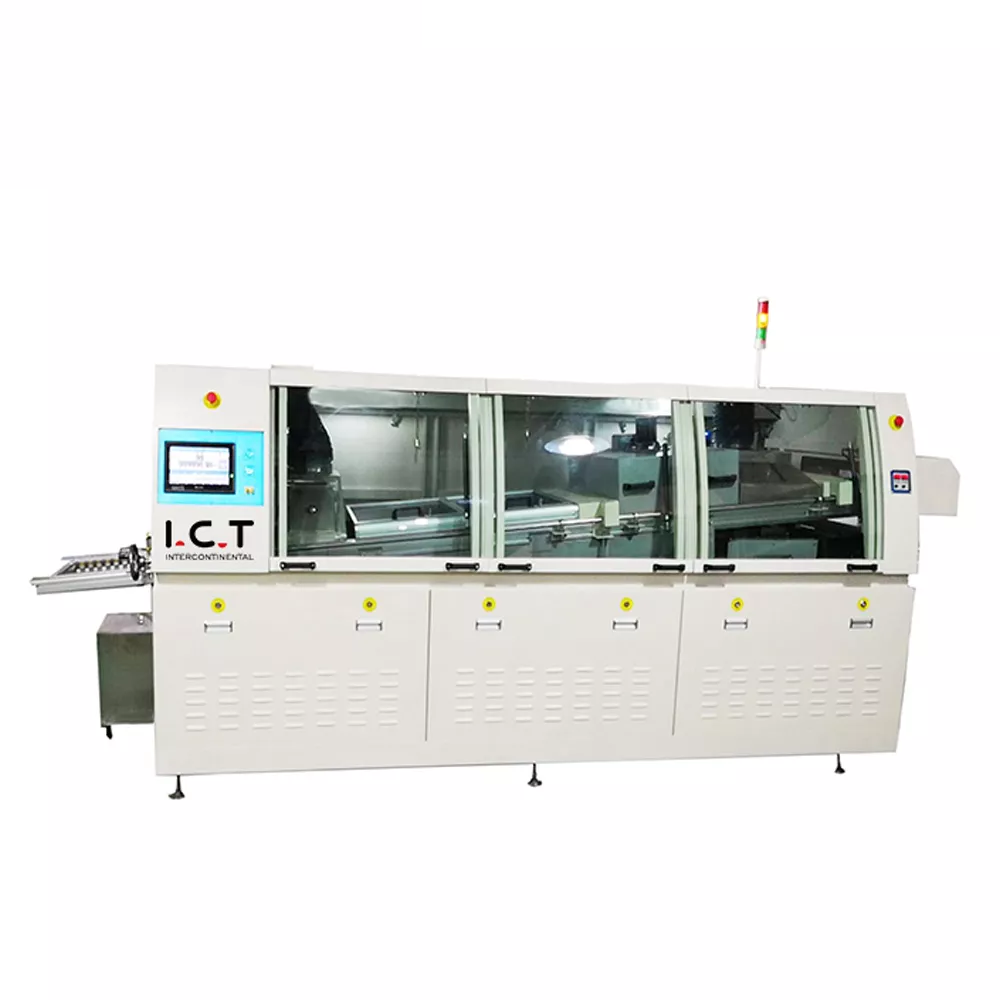

Dimension:(mm): 4200X1250X1500
Weight(kg): Approx.1500kg
Power Supply: 3P5W,380/220V 50Hz
Startup Power: 32kw
Operation Power: 12kw
Control System: Touch Screen + PLC
Spray System:
Transmission Method: Step motor
Spray Pressure: 0.25Mpa--0.4Mpa
lux flow: 10--100ml/min
Exhaust Diameter: Φ200mm
Exhaust Capacity: 25m3/min
Preheating System:
Preheating Mode: Hot air
Control Mode: PID + SSR
Preheating Zone: 4
Preheating Length: 1800mm
Preheating Temp.: (Room Temperature)-250°C
Warm-up Time(min): Approx.15min (setting 150°C)
Conveyor System:
PCB Width:: 60~350mm
Conveyor Speed: 0-2000(mm/min)
Conveyor Height: 750+/-20 (mm)
Finger: Double hook claw (Standard)
Conveyor width control: Manually
Conveyor Angle: 4~7degree
Soldering System:
Solder Pot style: Mechanical Motor drive
Solder Pot Material: Full Titanium (Standard FT)
Solder pot temperature: 300°C
Solder pot capacity: Lead-free 350kg
Other:
Finger cleaning system: Brush
