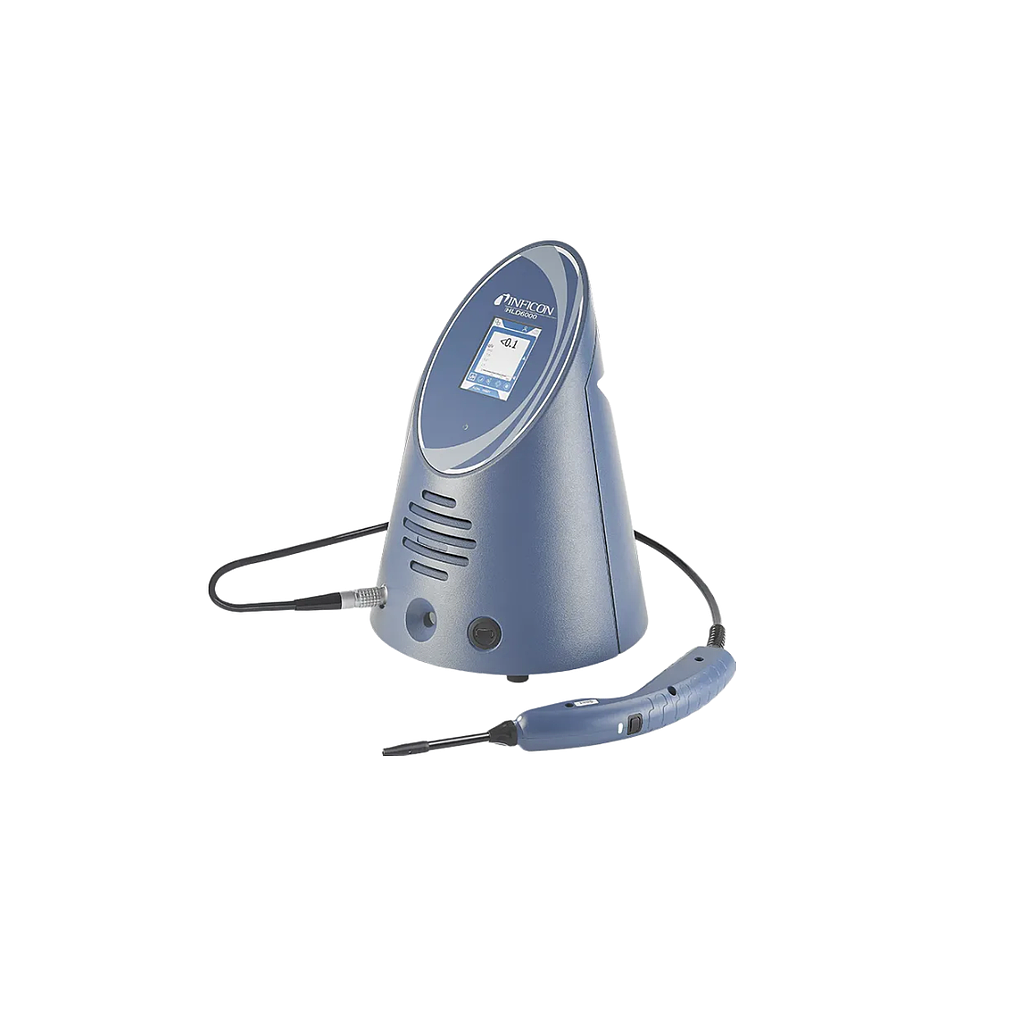

INFICON HLD6000 Refrigerant Leak Detector R600a/R290 Plus
Manufacturer: INFICON Model: HLD6000 P/N: 510-128 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Detectable trace refrigerants:
With handheld probe for single gas detection: R600a/R290, R744 (CO2)
With universal Smart handheld probe: Halogen-based refrigerants
Minimum detectable leak rate:
With handheld probe for single gas detection: 1.0 g/a
With universal Smart handheld probe: 0.5 g/a
Response time: < 1 s
Leak rate units: g/a, mbar l/s, oz/yr, lb/yr, Pa m3/s
Time until ready for operation < 30 s
Digital inputs/outputs: 10 inputs, 8 outputs (when used with I/O1000 module)
Serial interface: RS232 (when used with I/O1000 module) or fieldbus systems (when used with Profibus module, PROFINET IO module etc.)
Dimensions (diameter, height): 266 mm, 365 mm
Weight: 4.5 kg
Permissible operating temperature: 5–50 °C
Gas flow: 320 sccm
