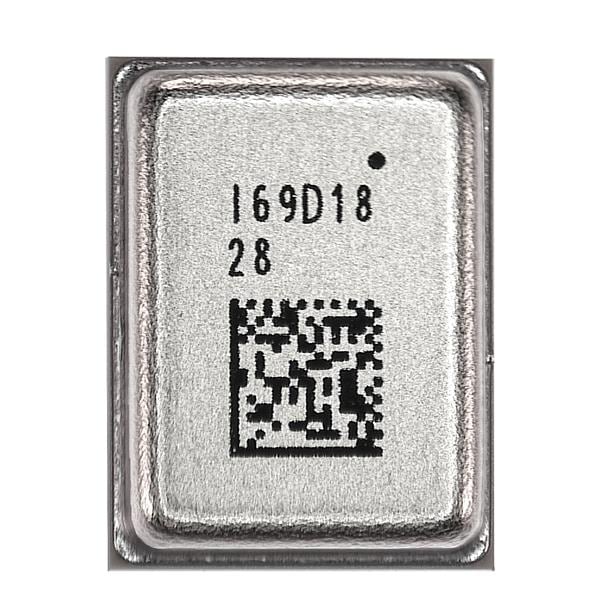

Infineon IM69D128SV01XTMA1 Digital MEMS Microphone MIC SDM DIGITAL
Manufacturer: Infineon Model: IM69D128SV01XTMA1 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Depth: 0.98 mm
Shape: Rectangular
Width: 2.65 mm
Length: 3.5 mm
IP Rating: IP57
Port Type: Bottom
Dimensions: 2.65 mm x 0.98 mm x 3.5 mm
Technology: MEMS
Output Type: Digital
Sensitivity: - 37 dB
Mounting Style: SMD/SMT
Frequency Range: 30 Hz
Termination Style: SMD/SMT
Sound Pressure Level: 128 dBSPL
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.62 V
Directional Properties: Omnidirectional
Operating Supply Voltage: 1.62 V to 3.6 V
SNR - Signal to Noise Ratio: 69 dB
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
