Fall Time: 6.9 ns
Rise Time: 23 ns
Technology: Si
Channel Mode: Enhancement
Configuration: Single

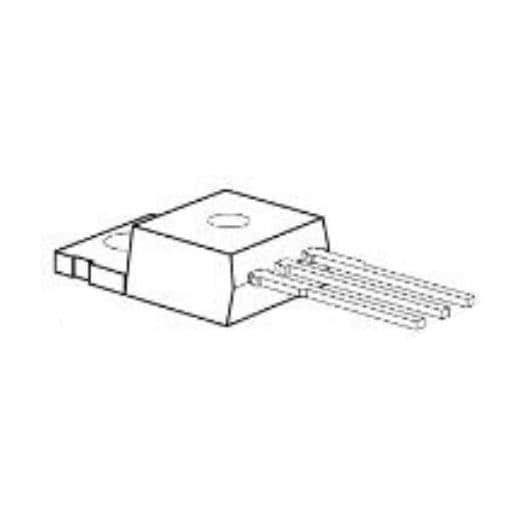

Mounting Style: Through Hole
Transistor Type: 1 N-Channel
Qg - Gate Charge: 27 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 75 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 16 ns
Typical Turn-Off Delay Time: 15 ns
Id - Continuous Drain Current: 53 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 40 S
Rds On - Drain-Source Resistance: 4.35 mOhms
Vds - Drain-Source Breakdown Voltage: 30 V
Vgs th - Gate-Source Threshold Voltage: 2.35 V
